Which Lithium Battery Fits a Dual 6V Battery Box? Group 24 vs. 31 vs. GC2
Many RV owners upgrade to lithium batteries hoping to simplify their electrical system and improve usable power capacity. In many cases, that means replacing two original 6V GC2 lead-acid batteries with a single lithium battery.
The challenge is that most RV 6V battery boxes were originally designed around dual GC2 golf cart battery dimensions, not modern 12V lithium battery sizes.
That is why comparing Group 24 vs. 31 vs. GC2 is more than a simple battery size discussion. Battery shape, height, length, and overall space efficiency all affect whether a lithium battery will fit properly inside the original RV compartment.
This guide explains how common lithium battery sizes compare when replacing dual 6V GC2 batteries and helps you choose the best lithium battery for a standard RV 6V battery box.
Why RV 6V Battery Boxes Are Built Around Dual GC2 Batteries
Most RVs that use 6V batteries actually use two GC2 batteries connected in series to create a 12V house battery system.
GC2 batteries were originally developed for golf carts and other deep-cycle applications. RV manufacturers later adopted them because they offered strong durability and reliable off-grid performance.
Because RV systems typically use two GC2 batteries together, most RV 6V battery boxes are designed around dual GC2 dimensions rather than standard 12V battery groups.
That creates several important fitment characteristics:
| Feature | Why It Matters |
|---|---|
| Tall battery compartment | Designed around GC2 height |
| Dual battery spacing | Optimized for two batteries |
| Cable routing layout | Built around series connections |
| Hold-down bracket spacing | Matches GC2 footprint |
This is why replacing dual 6V batteries with lithium is not simply about amp hours. Physical battery dimensions become extremely important.
Why Replacing Two 6V Batteries With One Lithium Battery Changes Battery Fitment
Traditional RV systems usually rely on two 6V GC2 flooded batteries wired together.
However, lithium batteries provide much higher usable capacity than lead-acid batteries. That allows many RV owners to replace both original batteries with a single lithium battery.
| Feature | Dual GC2 Lead Acid | Lithium Battery |
|---|---|---|
| Usable Capacity | About 50% | Up to 100% |
| Weight | Very heavy | Much lighter |
| Charging Speed | Slower | Faster |
| Maintenance | Required | Minimal |
| Cycle Life | Lower | Much longer |
That changes how RV battery box sizes should be evaluated.
The question is no longer simply:
“Which battery is physically larger?”
The real question becomes:
“Which lithium battery uses the original dual GC2 battery space most efficiently?”
GC2 Lithium Batteries: Keeping the Original Dual Battery Layout
Why GC2 Lithium Batteries Fit 6V Battery Boxes Best
GC2 lithium batteries are designed specifically to replace traditional GC2 lead-acid batteries.
Two GC2 lithium batteries provide the closest physical replacement for the original dual 6V setup because they preserve the factory battery layout and tray spacing.
Most GC2 lithium batteries fit directly into existing RV battery trays without requiring modifications.
Related Reading: [Full Guide] What Is A Group GC2 Battery？
Typical GC2 Lithium Battery Dimensions
| Dimension | Average Size |
|---|---|
| Length | 10.3 inches |
| Width | 7.1 inches |
| Height | 10.8 to 11.2 inches |
![[Like New] Power Queen 48V (51.2V) 30Ah GC2 Golf Cart Smart Lithium Battery - Power Queen US](https://cdn.shopify.com/s/files/1/0550/9971/9725/files/1_d75316e5-7f9b-4783-95d0-2b7eac99634c_600x600.jpg?v=1767677924)
Example of a high-voltage GC2 lithium battery. While voltages vary (from 12V to 48V), the physical dimensions remain standardized for easy installation.
Advantages of GC2 Lithium Batteries
| Benefit | Result |
|---|---|
| True drop-in replacement | Minimal installation changes |
| Preserves original layout | Simpler cable routing |
| Excellent tray compatibility | Better hold-down alignment |
| High usable capacity | Long off-grid runtime |
The main drawback is cost. Using two GC2 lithium batteries is often more expensive than switching to a single 12V lithium battery.
Can One Group 24 Lithium Battery Replace Two 6V GC2 Batteries?
Will a Group 24 Battery Fit Inside a 6V Battery Box?
Yes, Group 24 lithium batteries usually fit easily inside the space originally occupied by two GC2 lead-acid batteries.
Because Group 24 batteries are significantly smaller than the original dual-battery layout, installation is rarely difficult.
| Dimension | Average Size |
|---|---|
| Length | 10.25 inches |
| Width | 6.8 inches |
| Height | 8.9 inches |
Related Reading: What You Need to Know About Group 24 Deep Cycle Battery.
The Hidden Problem With Group 24 Batteries
Although a single Group 24 battery fits easily, it may not use the original dual GC2 battery compartment space efficiently.
Most 6V battery boxes are designed for taller batteries. A smaller Group 24 battery can leave significant unused vertical space.
For larger RV power systems, a single Group 24 battery may also provide less usable runtime than Group 27 or Group 31 options.
Best Use Cases for Group 24 Lithium Batteries
| RV Setup | Suitability |
|---|---|
| Small trailers | Excellent |
| Weekend camping | Excellent |
| Light electrical loads | Good |
| Large inverter systems | Limited |
Can One Group 31 Lithium Battery Replace Two GC2 Batteries?
Why Group 31 Batteries Are Popular for RV Lithium Upgrades
When comparing Group 24 vs Group 31, the biggest advantage of Group 31 is usable capacity.
Most Group 31 lithium batteries offer around 100Ah to 125Ah, making them one of the most popular choices for RV owners running inverters, refrigerators, solar charging systems, CPAP machines, and coffee makers.
A single Group 31 lithium battery can often replace two GC2 lead-acid batteries while reducing overall weight and simplifying wiring.
Related Reading: Full Guide of Group 31 Battery , Dimension, Features and Recommendation.
Group 31 Dimensions Compared to GC2
| Battery Type | Length | Width | Height |
|---|---|---|---|
| Group 31 | 13 in | 6.8 in | 9.4 in |
| GC2 | 10.3 in | 7.1 in | 11.1 in |
This creates an important fitment difference.
A single Group 31 battery is longer but shorter than a GC2 battery, which means it uses the original dual GC2 battery compartment differently.
The Main Fitment Challenge With Group 31 Batteries
Most 6V battery boxes were originally designed for two tall batteries rather than one longer battery.
| Potential Issue | Explanation |
|---|---|
| Battery tray length | Some compartments become tight |
| Cable routing | Terminal access may be restricted |
| Lid clearance | Terminal position may interfere |
Many RV owners can fit a Group 31 battery successfully, but careful measurements are important before upgrading.
The Hidden Middle Ground: Group 27 Lithium Batteries
Why Group 27 Is Often Overlooked
Between Group 24 and Group 31 sits Group 27, which many RV owners overlook during lithium upgrades.
However, Group 27 batteries often use the original dual GC2 battery space more efficiently than Group 24 while avoiding some fitment issues associated with Group 31.
Related Reading: A Comprehensive Guide to Group 27 Deep Cycle Battery.
Group 27 Size Comparison
| Battery Group | Length |
|---|---|
| Group 24 | 10.25 inches |
| Group 27 | 12 inches |
| Group 31 | 13 inches |
That one-inch reduction compared to Group 31 can make installation easier inside tighter RV battery compartments.
When Group 27 Makes Sense
| RV Setup | Compatibility |
|---|---|
| Mid-sized travel trailers | Excellent |
| Camper vans | Good |
| Solar systems | Good |
| Tighter battery compartments | Better than Group 31 |

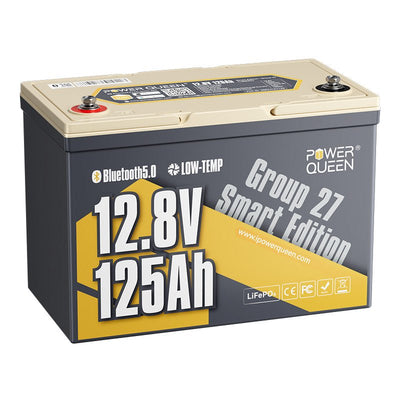

![[Like New] Power Queen 12V 125Ah Group27 Smart Deep Cycle Lithium Battery - Power Queen US](http://ipowerqueen.com/cdn/shop/files/PQ-12.8V125Ah-BT-A90_d9d8c2f3-7efc-42c0-9fe5-1f445fc5fccb.jpg?crop=center&format=webp&v=1767671428&width=400)
Group 24 vs. 31 vs. GC2: Which Lithium Setup Uses a 6V Battery Box Most Efficiently?
The answer depends on your RV power needs, installation goals, and available compartment space.
| Lithium Setup | Fit in Original Dual GC2 Space | Space Efficiency | Capacity | Installation Difficulty |
|---|---|---|---|---|
| 2 × GC2 lithium | Excellent | Excellent | High | Easy |
| 1 × Group 24 lithium | Easy | Moderate | Lower | Very easy |
| 1 × Group 27 lithium | Very good | Good | Moderate | Easy |
| 1 × Group 31 lithium | Usually good | High | High | Moderate |
For RV owners who want the simplest direct replacement, GC2 lithium batteries remain the cleanest option.
For RV owners who want a simpler single-battery upgrade with excellent runtime, Group 31 batteries are often the most attractive solution.
Common Mistakes When Replacing Dual 6V Batteries With Lithium
Ignoring Internal Battery Box Measurements
Many RV owners only measure external dimensions. Internal supports and cable routing often reduce usable space.
Forgetting Terminal Height
Even if the battery body fits, terminals can interfere with the battery box lid.
Assuming All Lithium Batteries Follow Standard Sizes
Different manufacturers use different case designs. Always verify exact dimensions before buying.
Focusing Only on Rated Amp Hours
Lithium batteries deliver far more usable energy than lead-acid batteries.
A smaller lithium battery can sometimes outperform a much larger flooded battery setup.
Read More: How to Convert RV Batteries to Lithium (Step-by-Step Upgrade Guide).
How to Measure a 6V Battery Box Correctly
Measure Internal Length Carefully
A Group 31 battery may exceed available length inside tighter RV battery trays.
Check Vertical Clearance
Most GC2 compartments are tall, but cable bends still require additional clearance.
Leave Room for Wiring
Lithium batteries generate less heat than flooded batteries, but cable routing still matters.
Verify Hold-Down Locations
Some RV battery trays use fixed brackets designed specifically around dual GC2 layouts.
FAQs About 6V Battery Boxes and Lithium Battery Sizes
Can one lithium battery replace two 6V RV batteries?
Yes. In many RV setups, one 12V lithium battery can replace two 6V GC2 lead-acid batteries because lithium batteries provide much higher usable capacity, lighter weight, and simpler wiring.
What lithium battery size is best for replacing two 6V GC2 batteries?
For a single-battery replacement, Group 31 lithium batteries are often the best high-capacity option. Group 27 batteries offer a better balance of size and fitment, while Group 24 batteries work well for smaller RV power needs.
Will a Group 31 lithium battery fit in a 6V battery box?
Often yes, but it depends on the internal length of the battery compartment. A Group 31 battery is longer than a GC2 battery, so you should measure the tray length, terminal clearance, and cable routing space before buying.
Is Group 24 too small for a 6V battery box?
Physically, no. A Group 24 lithium battery usually fits easily inside the space originally used by two GC2 batteries. However, it may leave unused space and may provide less capacity than Group 27 or Group 31 options.
Is GC2 lithium still the best fit for RV 6V battery boxes?
Yes, if your priority is direct replacement. Two GC2 lithium batteries usually match the original dual 6V battery layout best because they preserve the factory tray spacing, cable routing, and hold-down position.
Which is better: Group 24 vs Group 31 for RV lithium upgrades?
Group 31 is usually better for higher-capacity RV systems, solar setups, inverters, and longer off-grid use. Group 24 is better for smaller trailers, weekend camping, lighter loads, and budget-focused upgrades.
Do I need to modify my RV battery box when switching to lithium?
Not always. Group 24 and Group 27 lithium batteries usually fit easily, while Group 31 batteries may require more careful measurement. GC2 lithium batteries are usually the easiest direct-fit option.
Final Thoughts on Choosing Lithium Batteries for a 6V Battery Box
Most RV owners upgrading to lithium are not replacing a single battery. They are replacing an entire dual GC2 lead-acid battery system.
That changes how lithium battery fitment should be evaluated.
The best lithium battery is not simply the physically largest option. It is the battery configuration that uses the original 6V battery box space most efficiently while meeting your RV power needs.
GC2 lithium batteries preserve the original factory layout. Group 31 batteries simplify the system while maximizing usable energy. Group 27 batteries provide an excellent balance between fitment and capacity. Group 24 batteries offer a lightweight and budget-friendly upgrade path.
Before buying, always measure your actual battery compartment carefully. The best lithium upgrade is not only about amp hours. It is about choosing the lithium battery size that truly fits your RV battery box correctly.
