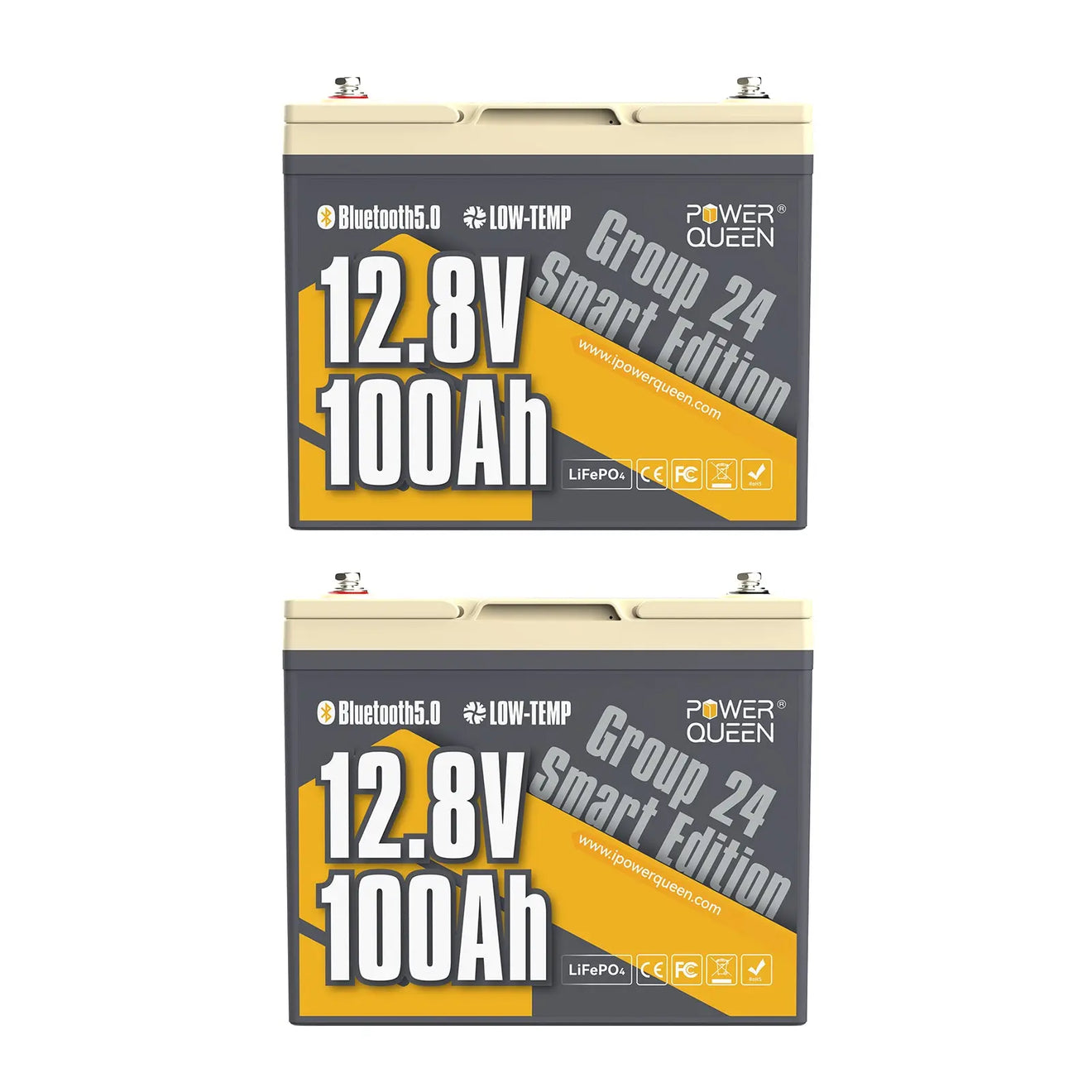

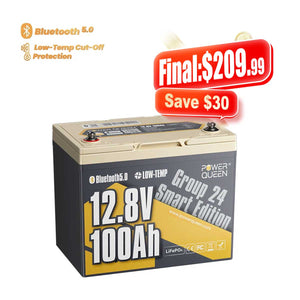

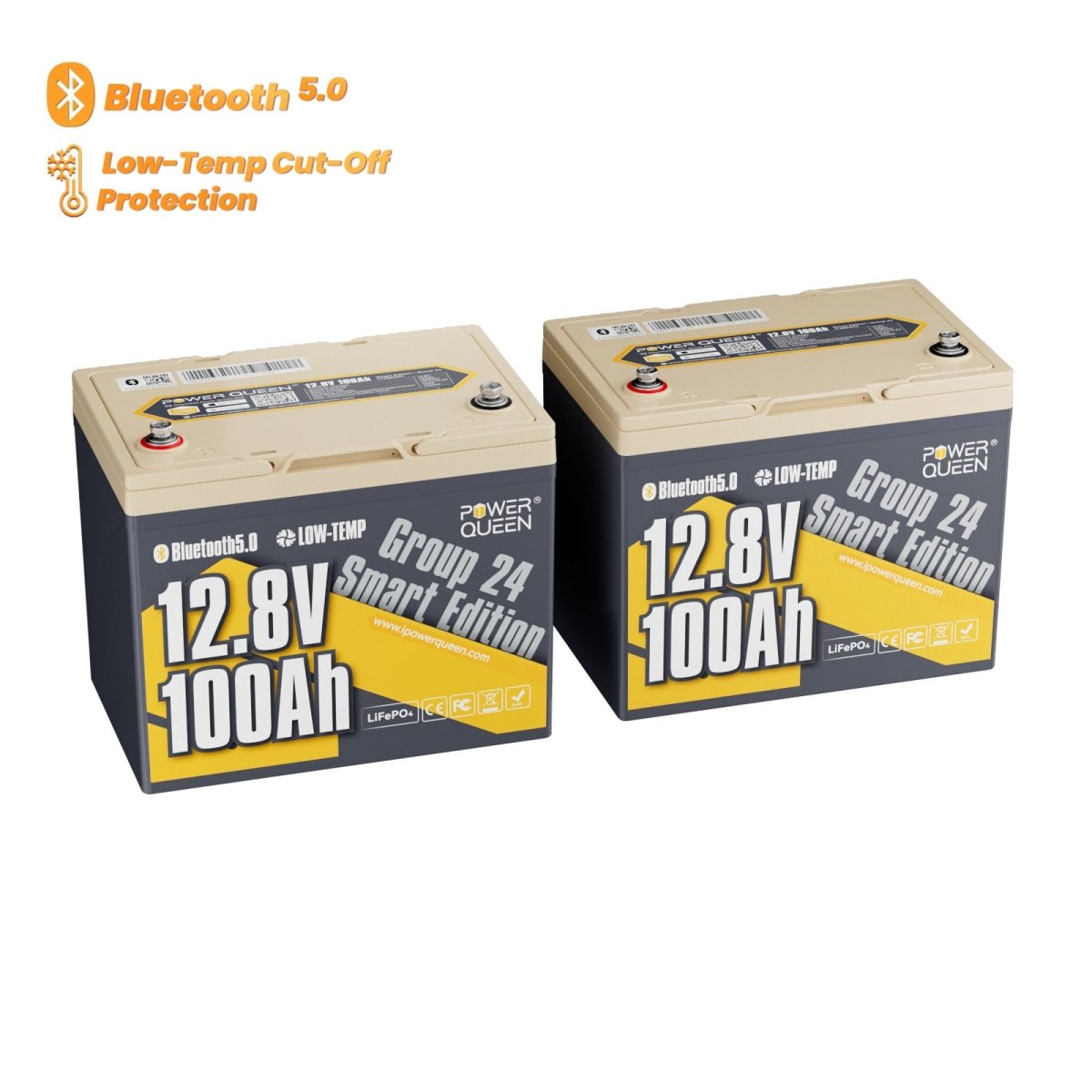

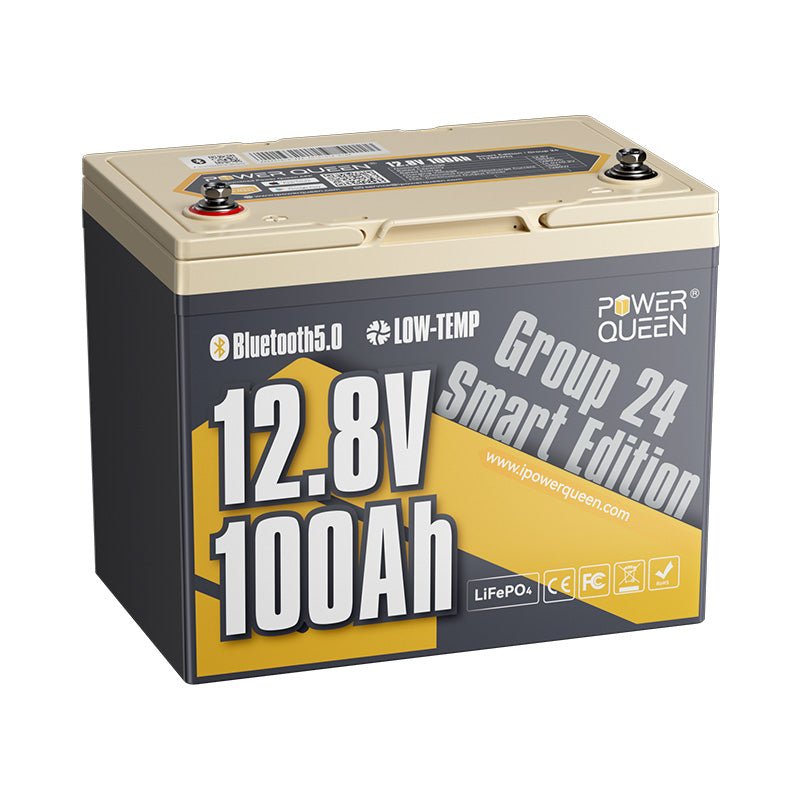

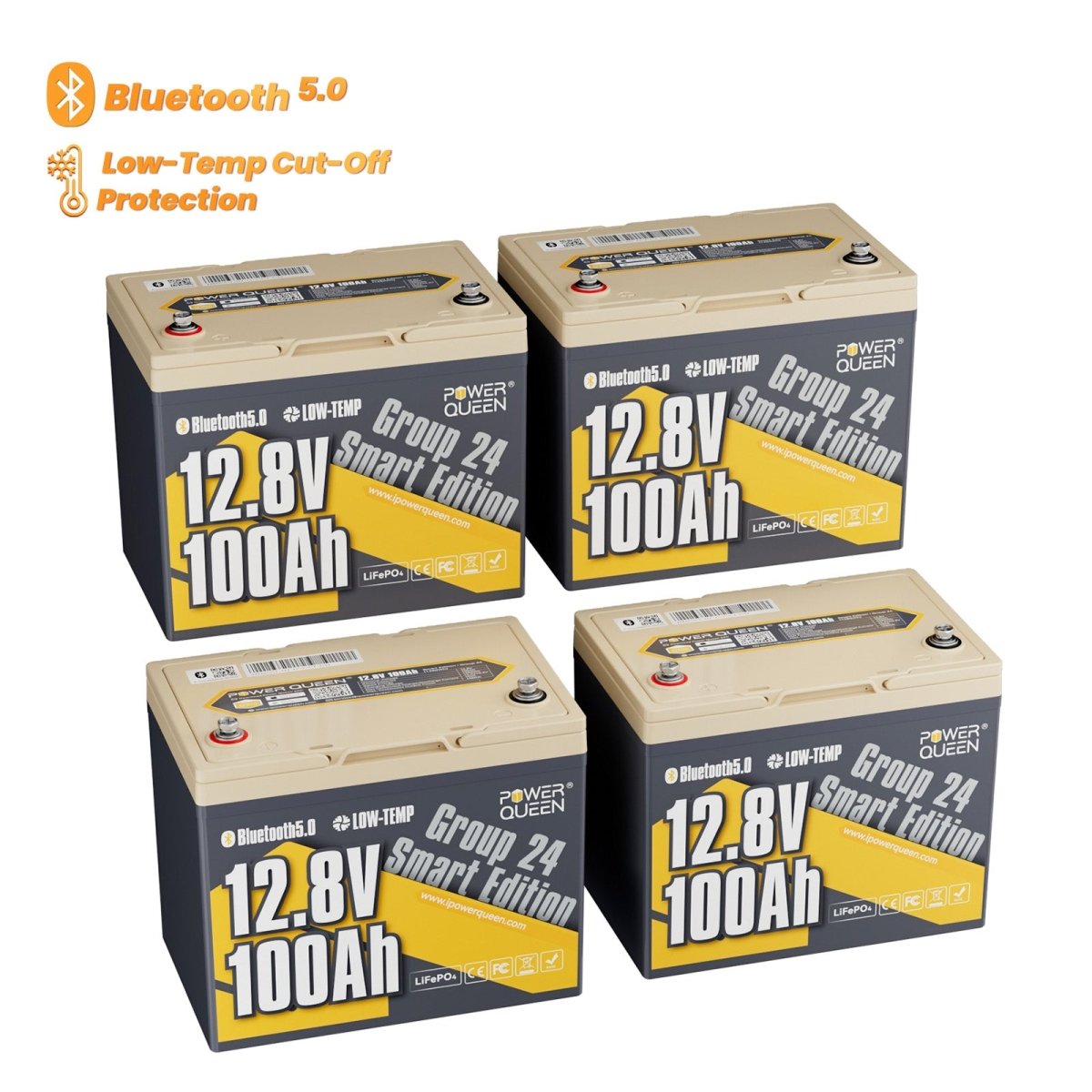

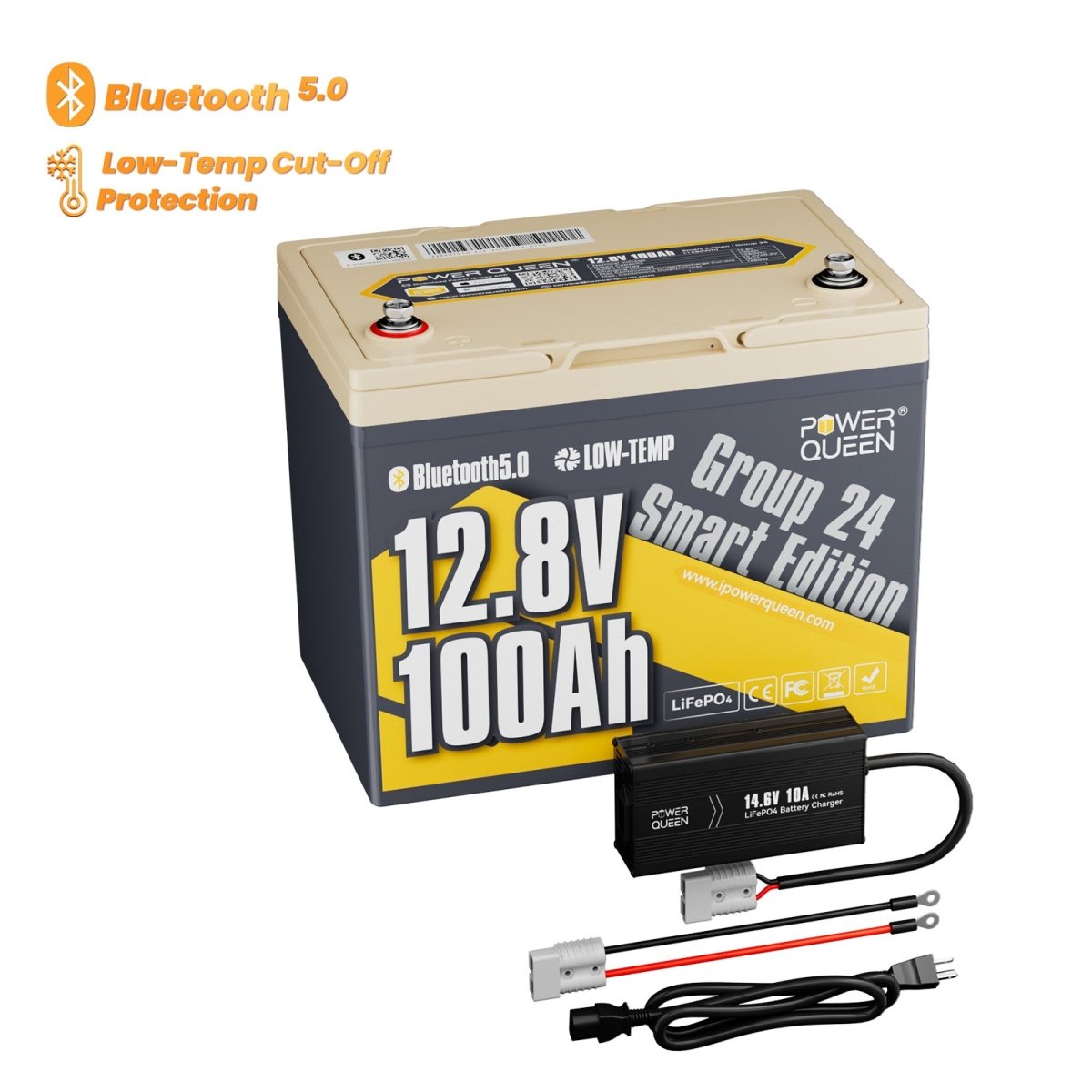

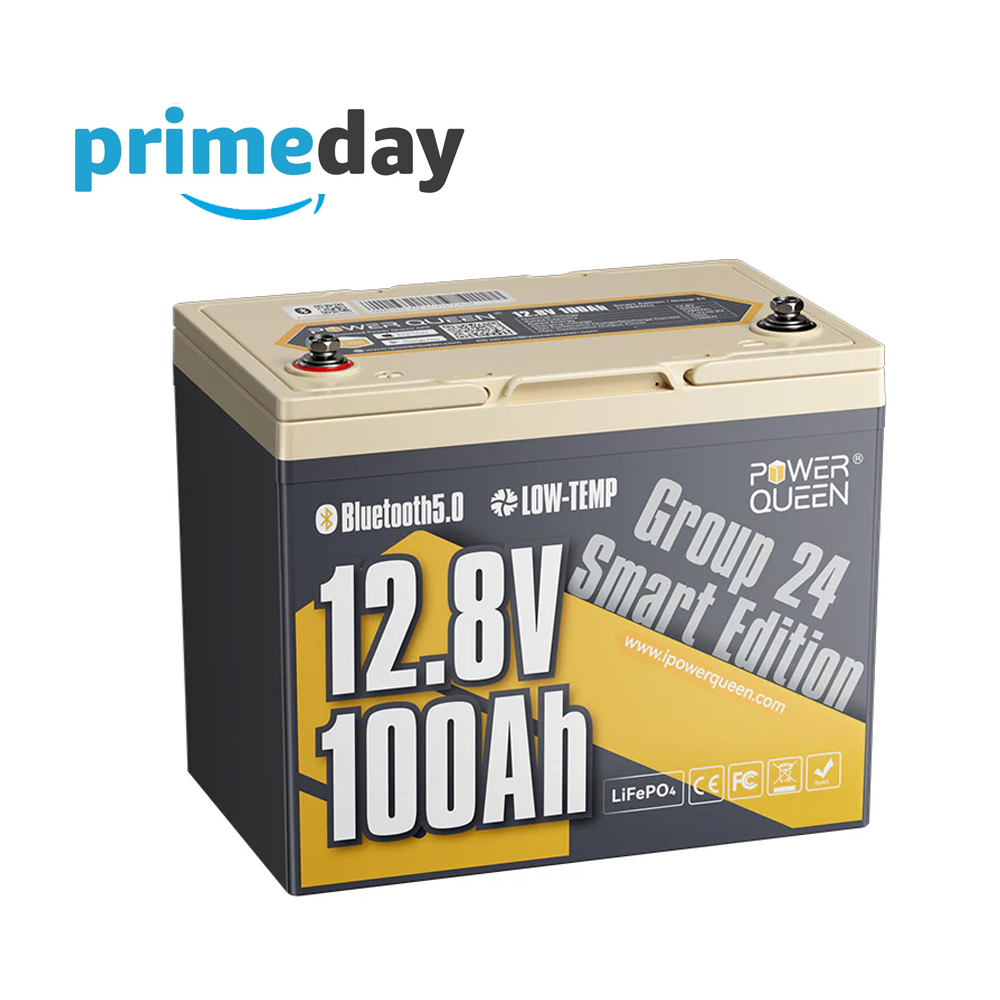

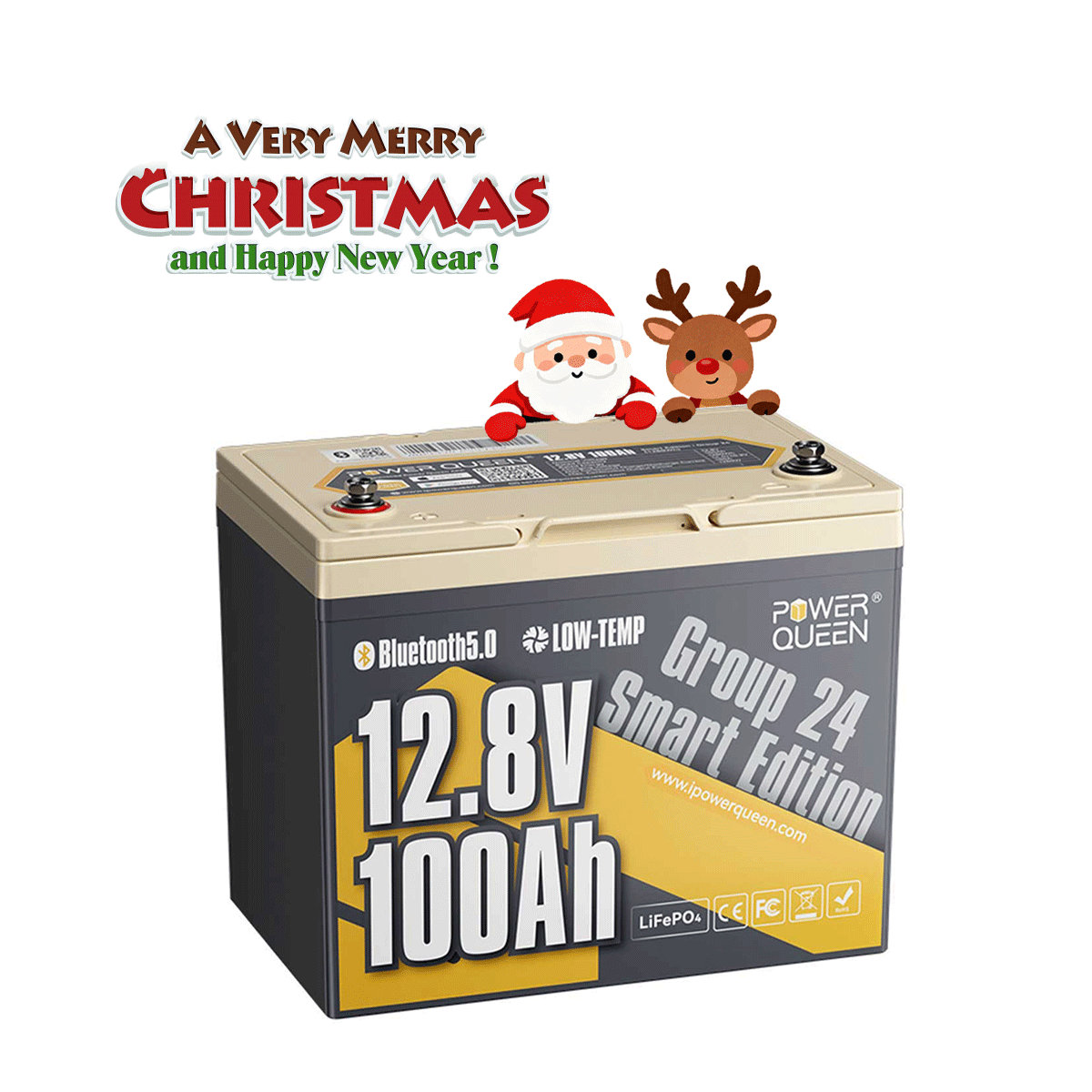

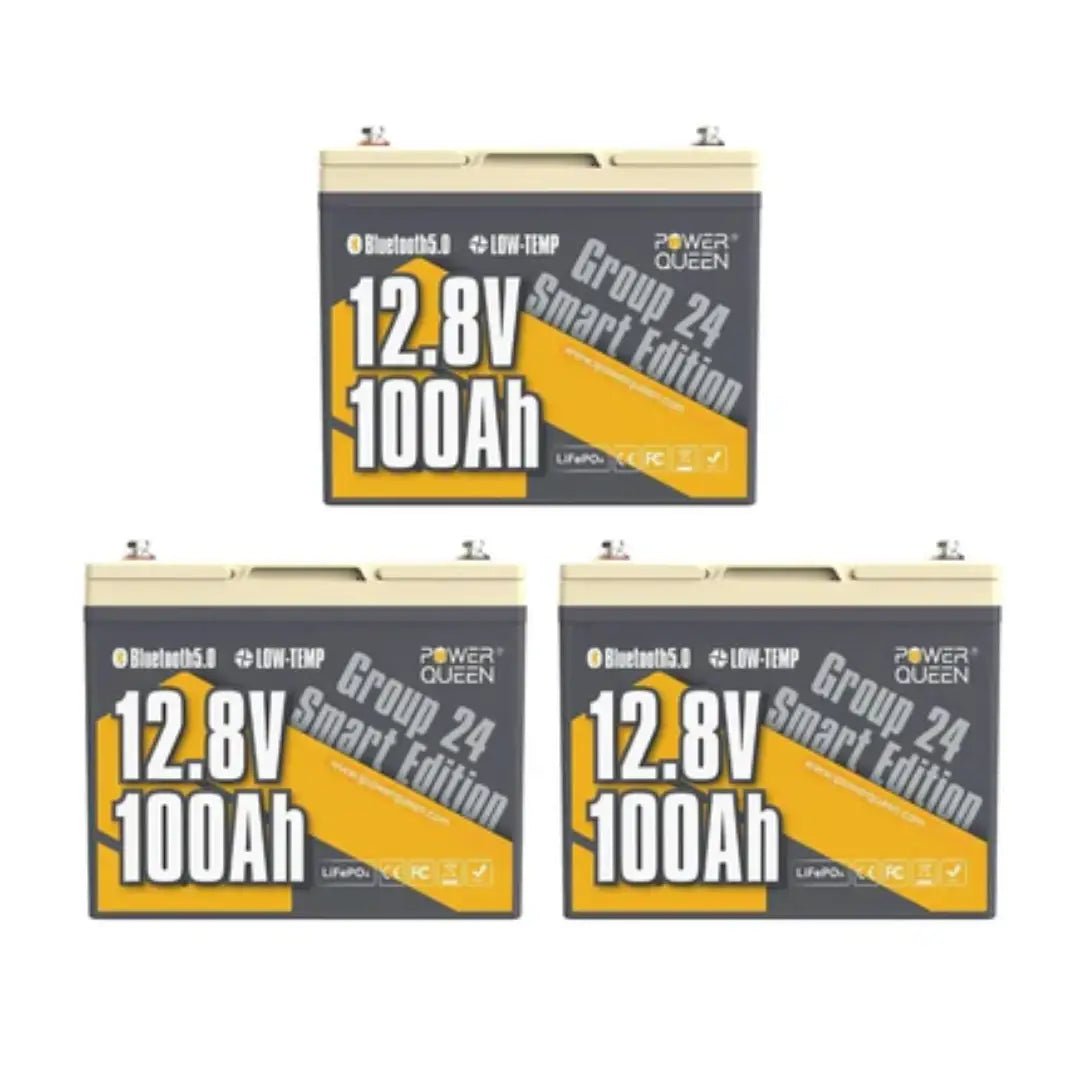

Name: Power Queen 12V 100Ah Group 24 Smart Deep Cycle Lithium Battery
Brand: Power Queen
SKU: P12V100-100-PERM24-BT-4-A70
Price: 198.99 USD
Availability: InStock

Power Queen 12V 100Ah Group 24 Smart Deep Cycle Lithium Battery

Product form

Power Queen 12V 100Ah Group 24 Smart Deep Cycle Lithium Battery

⬇️Description

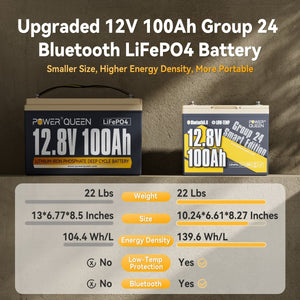

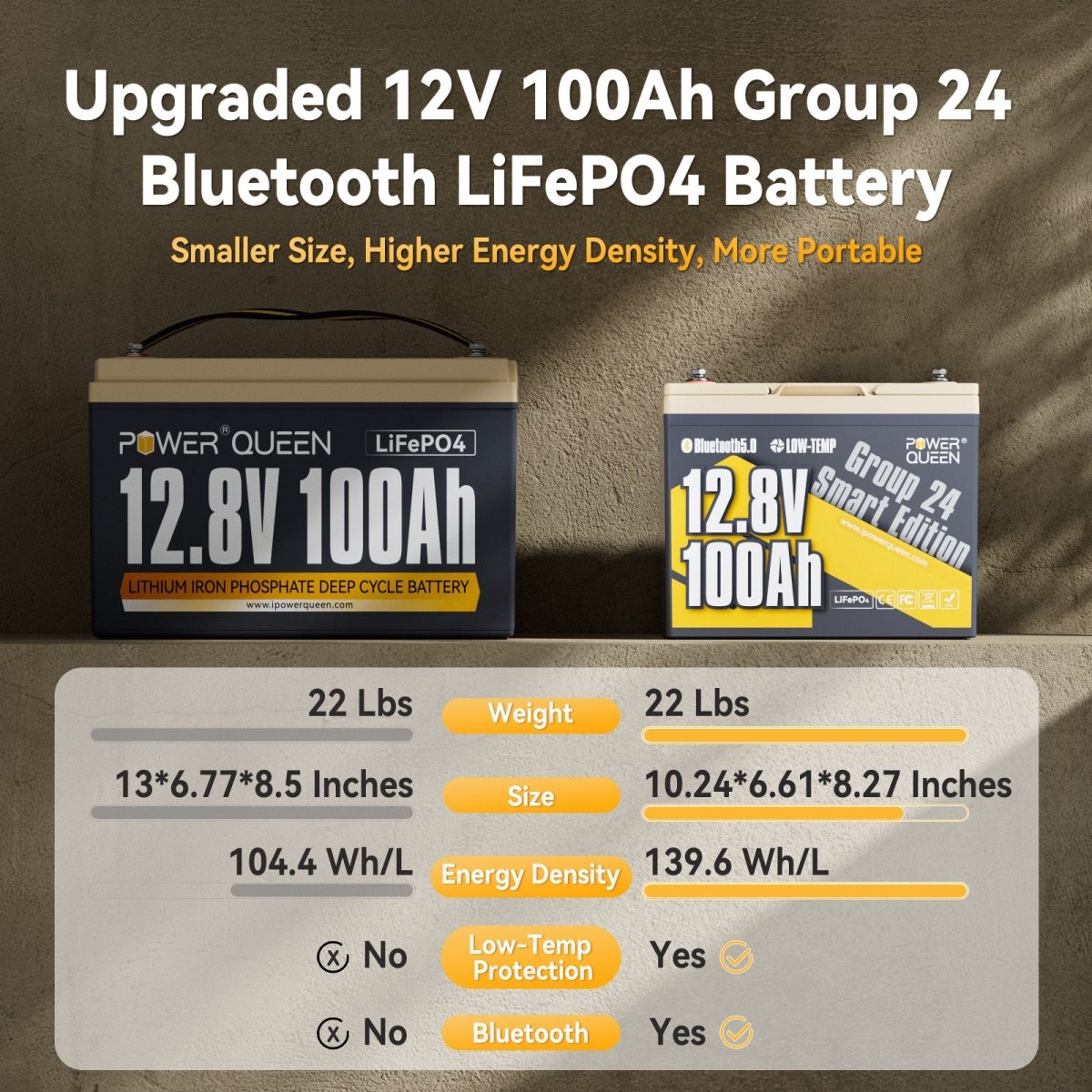

❇️Same energy, more compact: 23.8% smaller and 13.4% lighter than 12V 100Ah(Group31) lithium battery.

❇️Bluetooth 5.0 for real-time monitoring( SOC , charge/discharge,voltage,etc),EMC/RF tests for stable performance.

❇️Massive 1280Wh capacity, 1280W max continuous Output Power, expandable up to 20.48kWh (4P4S).

❇️Multi-level BMS protection and low-temp cut-off ensure safe charge/discharge, protecting and extending lifespan.

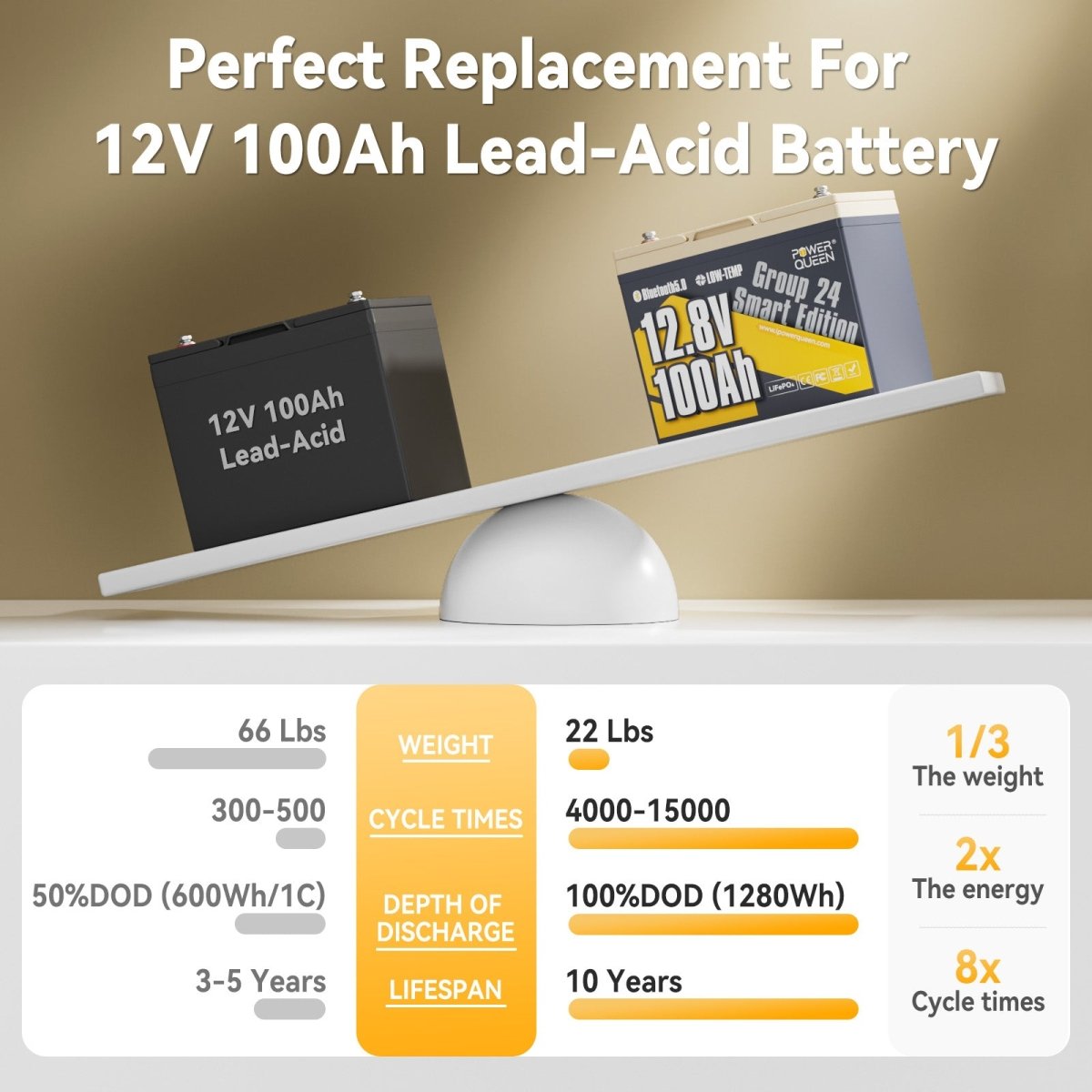

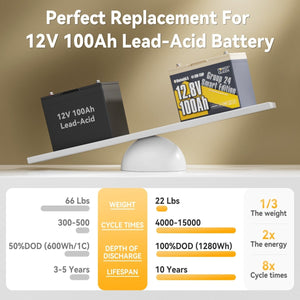

❇️EV-grade LiFePO4 cells, 10-year lifespan: 4000-15000 cycles, 8X deep cycles and 3.3X longer lifespan than 12V 100Ah lead-acid battery.

❇️Wide range of uses: perfect for trolling motors, RVs, camping, home storage, off-grid applications, and beyond.

Size Free pickup in our shop(s) Free pickup in our shop(s)

10 in stock

$309.99$198.99

Free shipping in the US

3-7 working days in the US

Easy return & exchange

Not satisfied? We offer a hassle-free 30-day return and exchange policy.

Worry-free payment

These products might interest you

Choose this product

Power Queen 14.6V 20A LiFePO4 Battery Charger For 12V LiFePO4 Lithium Battery
$79.99
Choose this product

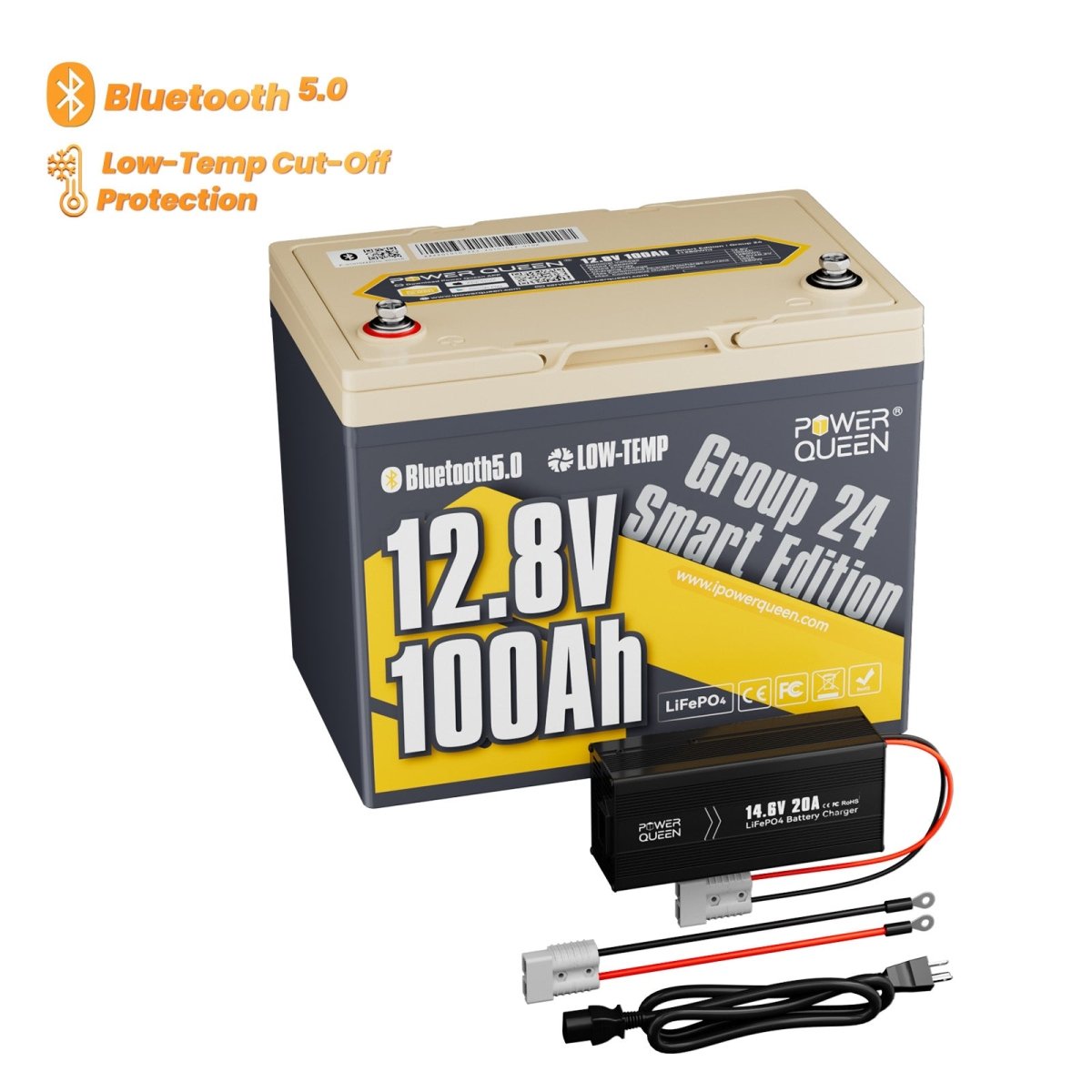

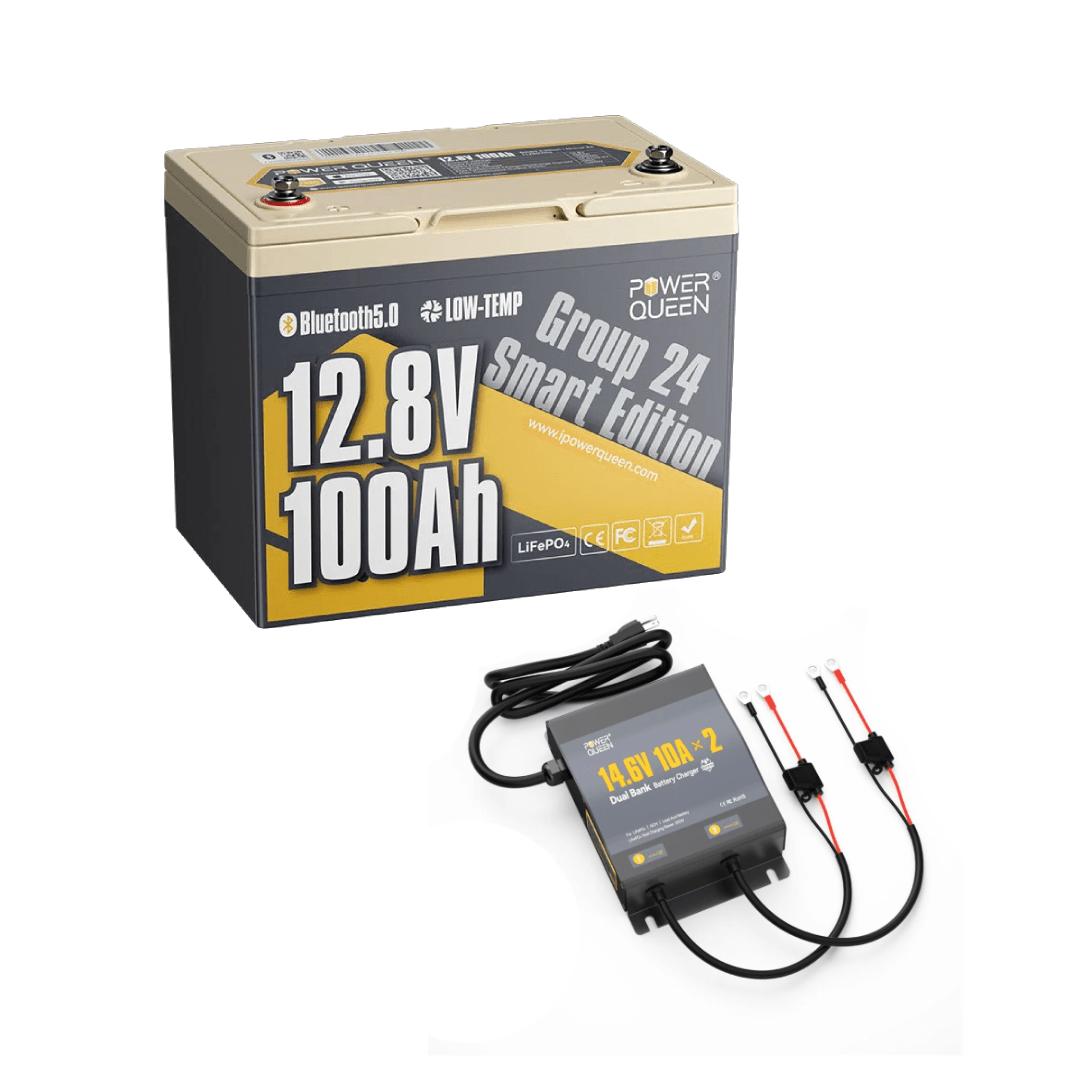

Power Queen 12V 20A Charger Kit With 12V 100Ah Group 24 Smart Deep Cycle Lithium Battery
$285.98
Choose this product

Power Queen 12/24V 30A MPPT Solar Charge Controller & Bluetooth Adapter
$95.99
Choose this product

Power Queen 500A Battery Monitor with Shunt
$58.99

FEATURES
SPECS
FAQ
REVIEWS

all-in-one battery solution 12.8V 100Ah G24 BT battery

Power-Queen-12V-100Ah-Group-24-deep-cycle-lithium-battery-canada-with-EV-Grade-battery-cell-and-Self-Developed-BMS

lithium battery with or wothout bluetooth function

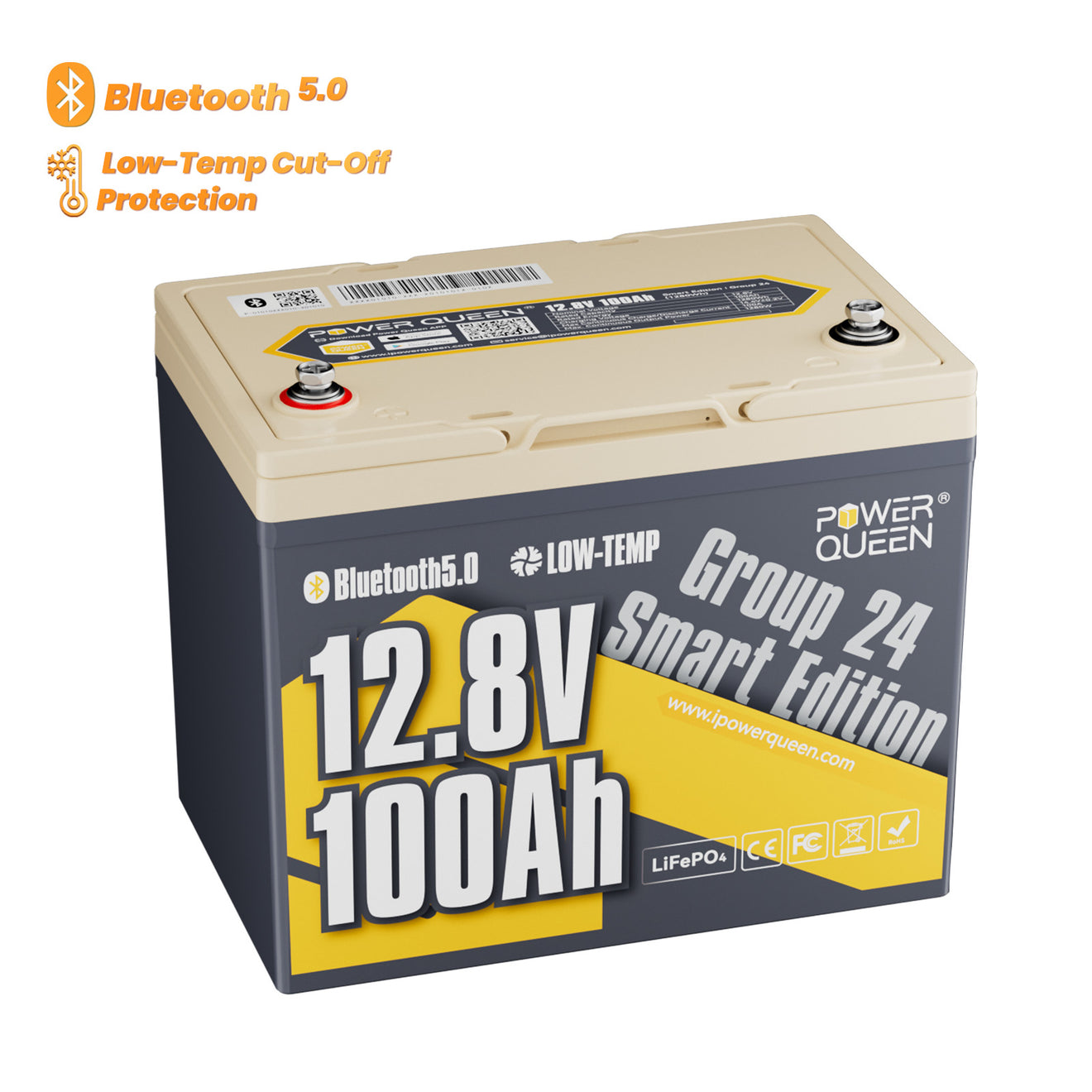

Power Queen 12V 100Ah Group 24 Smart Deep Cycle Lithium Battery with low-temperature cut off protection

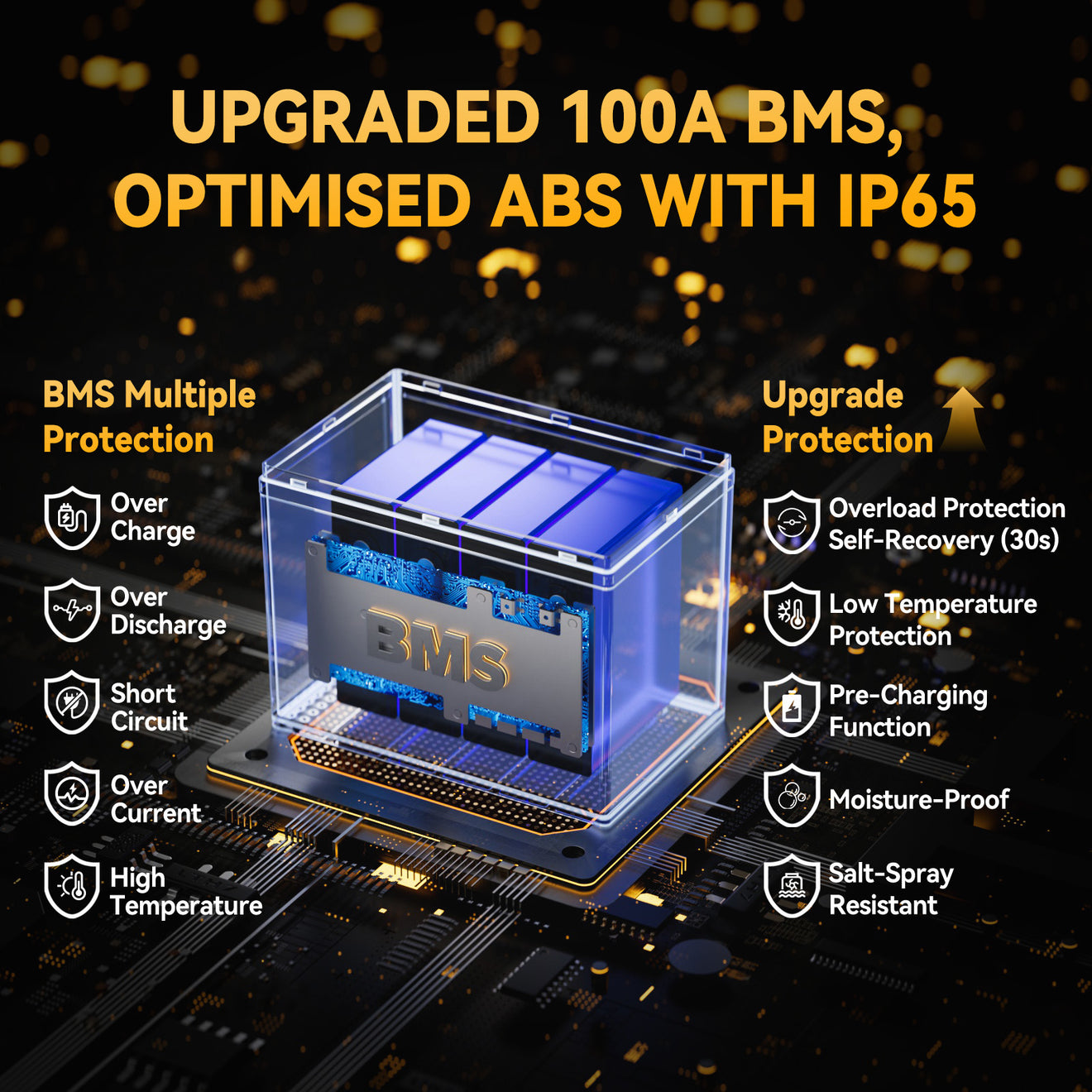

lithium battery with BMS multiple protections

lithium battery with upgraded EV-GRADE A cells

upgraded BMS for stronger protection against moisture&salt spray

3-ways-to-charge-Power-Queen-12V-100Ah-Group-24-Smart-Lithium-LiFePO4-Battery

12V 100Ah G24 BT lithium battery vs G24 lithium battery vs mini lithium battery

SPECS

BATTERY

Cell Type：

LiFePO4

Warranty：

5 Years

Cycle Life：

4000 cycles at 100% DOD, 6000 cycles at 80% DOD, 15,000 cycles at 60% DOD

Nominal Voltage：

12.8V

Rated Capacity：

100Ah

Energy：

1280Wh

Max. Expansion (Parallel & Series)：

4P4S

Internal Resistance：

4P4S

Certifications：

UL, FCC, CE, RoHS, UN38.3

BMS

BMS：

100A

Max. Continuous Output Power：

1280W

Max. Continuous Charge Current：

100A

Max. Continuous Discharge Current：

100A

Max. Discharge Current 5 Seconds：

280A

CHARGE

Charge Method：

CC/CV

Charge Voltage：

14.4V ± 0.2V

Recommend Charge Current：

20A (0.2C)

TEMPERATURE

Charge Temperature：

0℃ to 50℃ / 32℉ to 122℉

Discharge Temperature：

-20℃ to 60℃ / -4℉ to 140℉

Storage Temperature：

-10℃ to 50℃ / 14℉ to 122℉

OTHERS

Terminals：

M8 bolts

Weight Approx.：

21 lbs

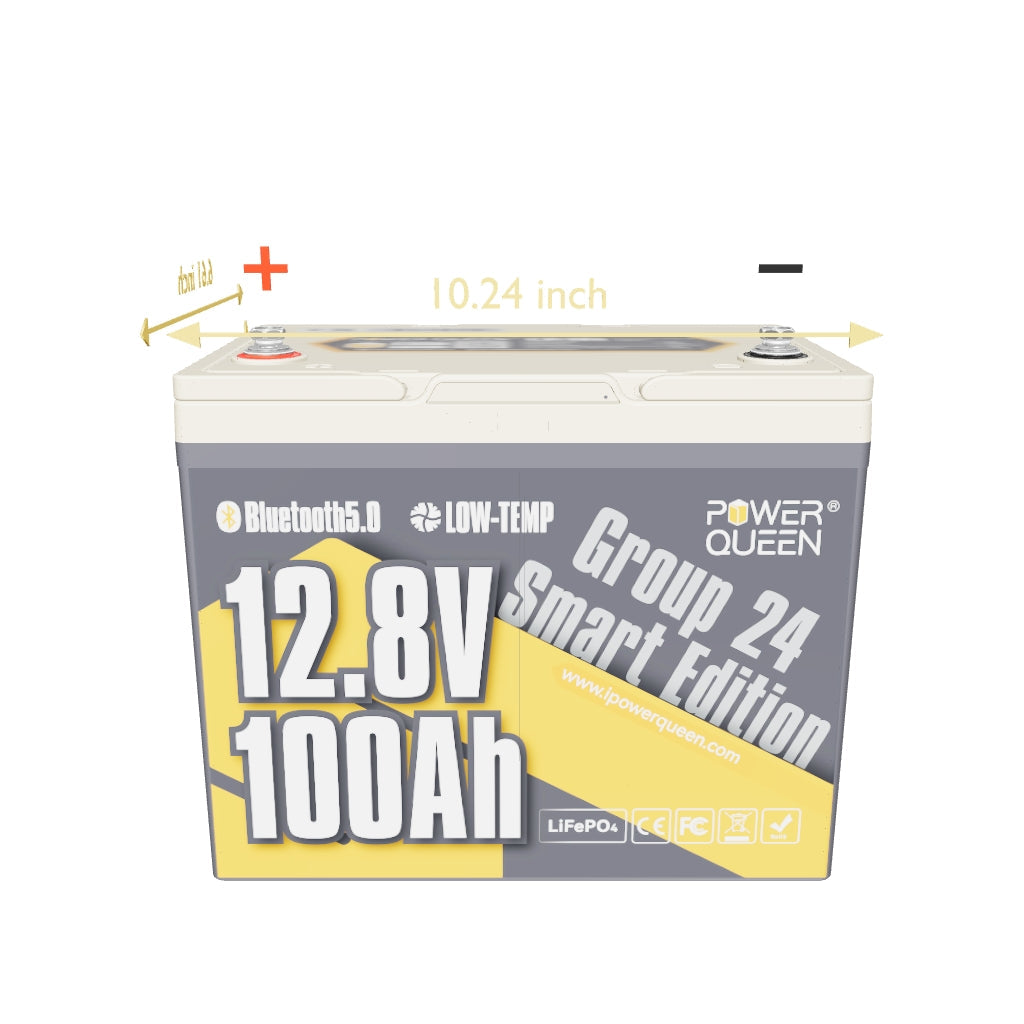

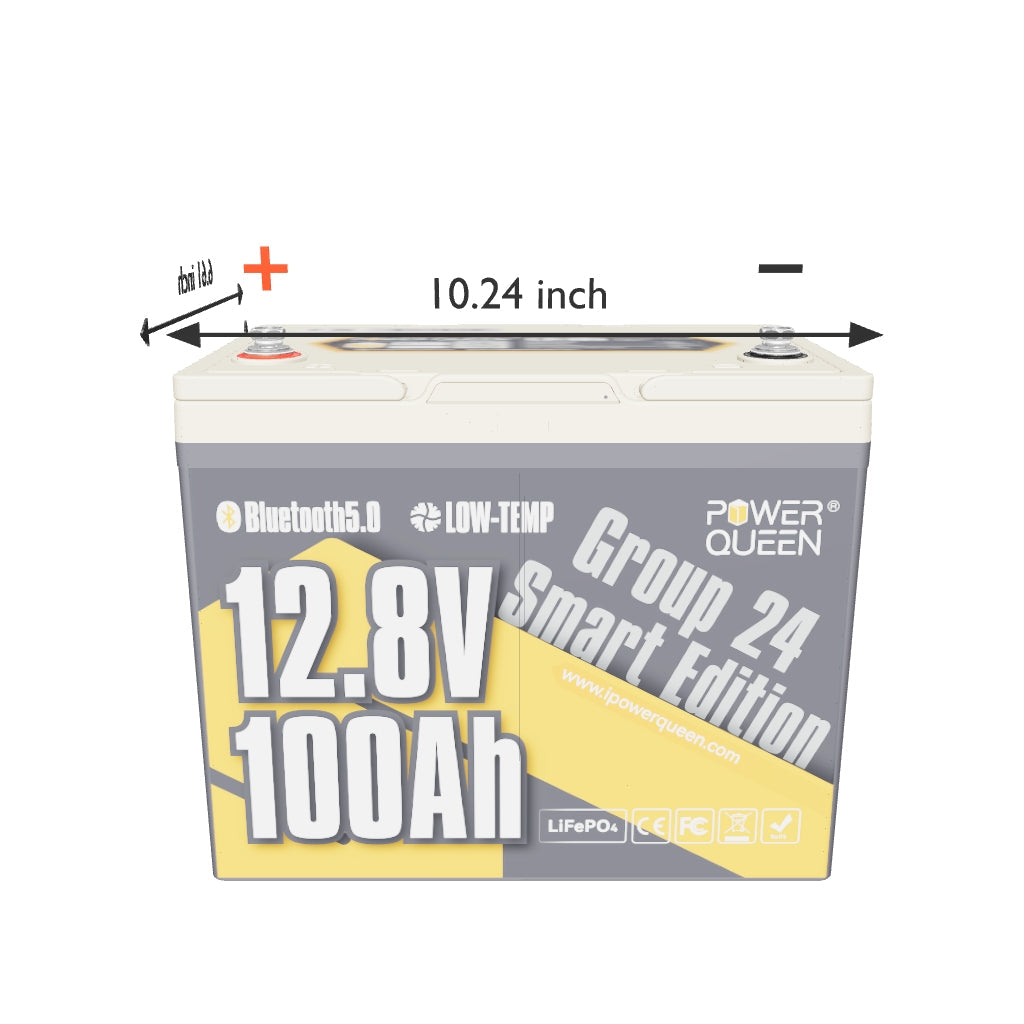

Size：

10.23*6.61*8.22 in

Housing Material：

ABS

Protection Class：

IP65

FAQ

Q: How to charge Power Queen 12V 100Ah Bluetooth lithium batteries?

1. Using Solar Panels

The battery can be fully charged in one day (with effective sunshine 4.5 hrs/day) by 400W solar panels. It may take more than one day to fully charge the battery by ≥400W solar panels since the duration and intensity of light would be a great factor for their charging efficiency.

2. Generator/Alternator

If the alternator or generator supports DC output, a DC-to-DC charger is needed to connect the battery to the generator; if your alternator or generator supports AC output, please add a suitable battery charger to connect the battery and the generator according to our recommendations. The Recommended Charging Voltage: 14.2V - 14.6V.

The Recommended Charging Current: ① 20A (0.2C): the battery will be fully charged in around 5 hrs to 100% capacity;

② 50A (0.5C): the battery will be fully charged in around 2 hrs to around 97% capacity.

3. LiFePO4 Smart Chargers

To charge 12V battery, it is recommended to use 14.6V battery charger.

The Recommended Charging Voltage: 14.2V - 14.6V.

The Recommended Charging Current: ① 20A (0.2C): the battery will be fully charged in around 5 hrs to 100% capacity;

② 50A (0.5C): the battery will be fully charged in around 2 hrs to around 97% capacity.

Q: What are the Differences Between a Group 24 and Group 31 Battery?

The main difference between a Power Queen Group 24 and Group 31 battery is their physical size. Group 24 batteries are generally smaller than Group 31 batteries.

Can read on Deep Cycle Group 24 VS Group 31 for more information.

Q: How do I monitor the battery status?

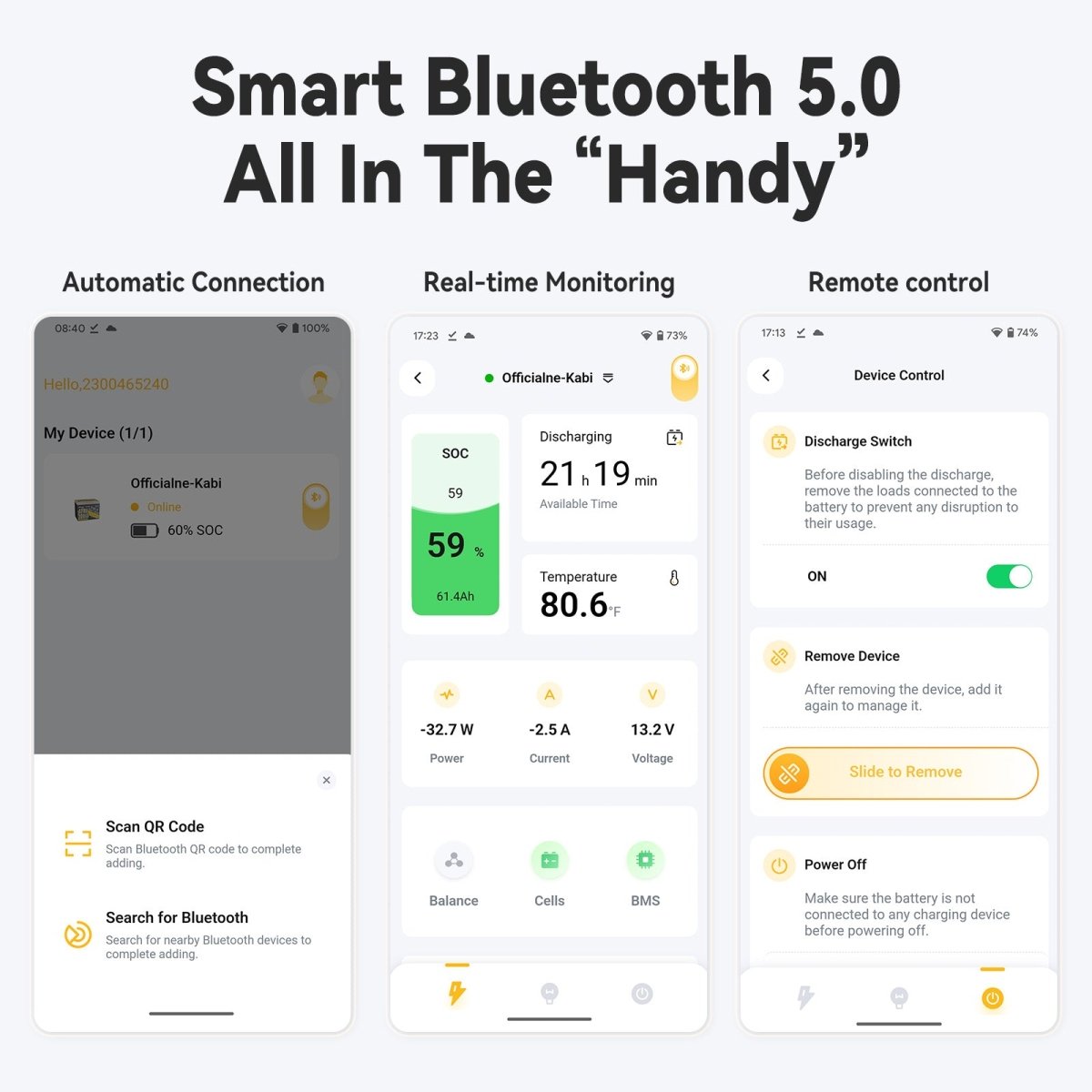

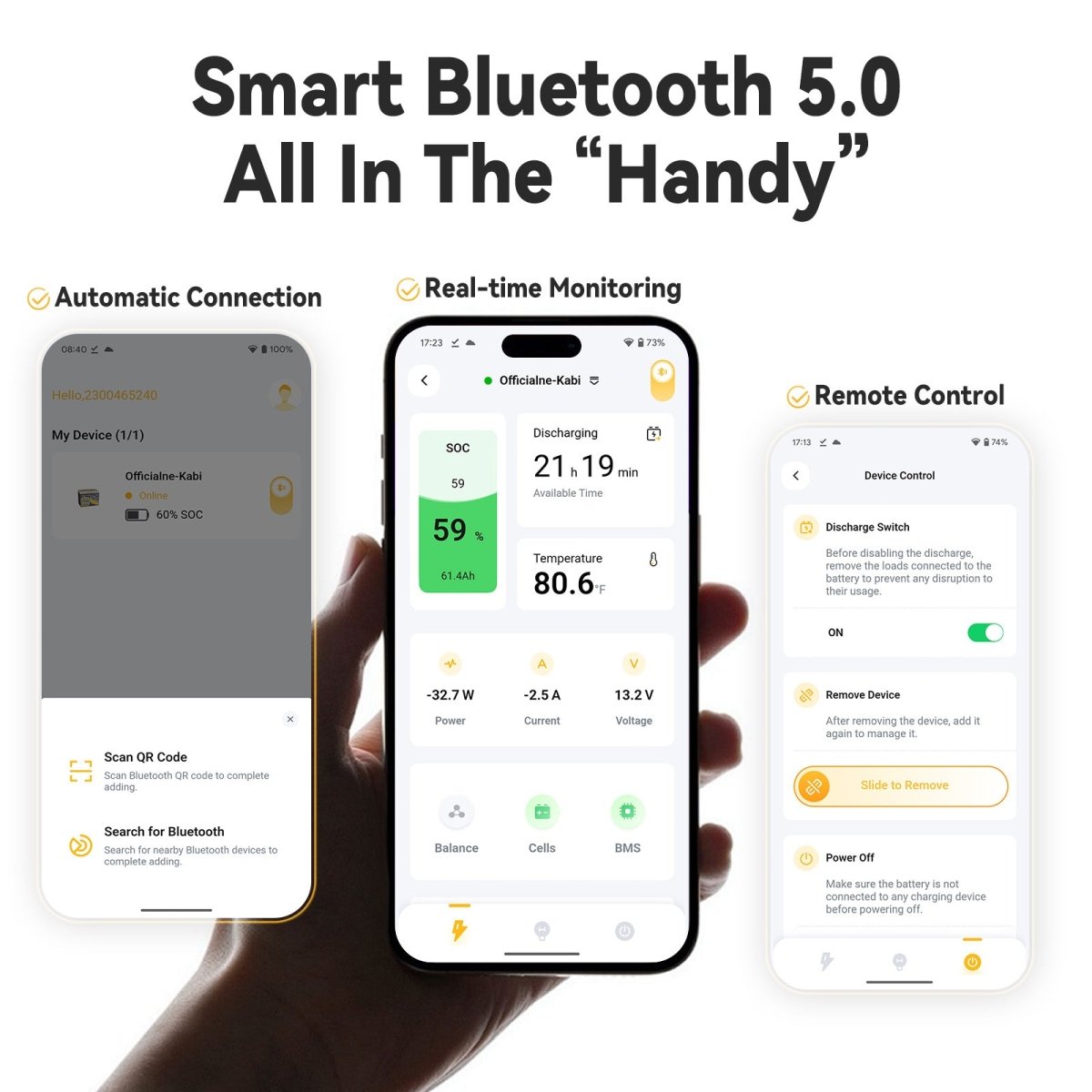

The Power Queen 12V 100Ah Group 24 Lithium Battery features an integrated Bluetooth module that effortlessly connects to your device via the Bluetooth app by simply scanning the QR code on the top of the battery. This ensures a stable and interference-free connection, allowing you to monitor the battery status in real-time, including state of charge (SOC), voltage, and more.

Q: What should I do when receive the battery?

Upon receiving your battery, please be aware that it might arrive with a low State of Charge (SOC) due to transportation and storage. To ensure optimal performance, we recommend promptly charging the battery to avoid over-discharge.

If you plan to store the battery for an extended period without use, it is advisable to charge it to 50% SOC and perform maintenance every 3 months. These practices will help maintain the battery's functionality and performance over time. You can read the article: Storing LiFePO4 Batteries: A Guide to Proper Storage.

Q: Does this 12V 100Ah Deep Cycle Lithium Battery has low-temperature protection?

Yes, this battery has low-temperature charging-off protection. It's recommend to charge the battery during the temperature range: 0℃ to 50℃ / 32℉ to 122℉.

Q: How many batteries may be connected in series or parallel?

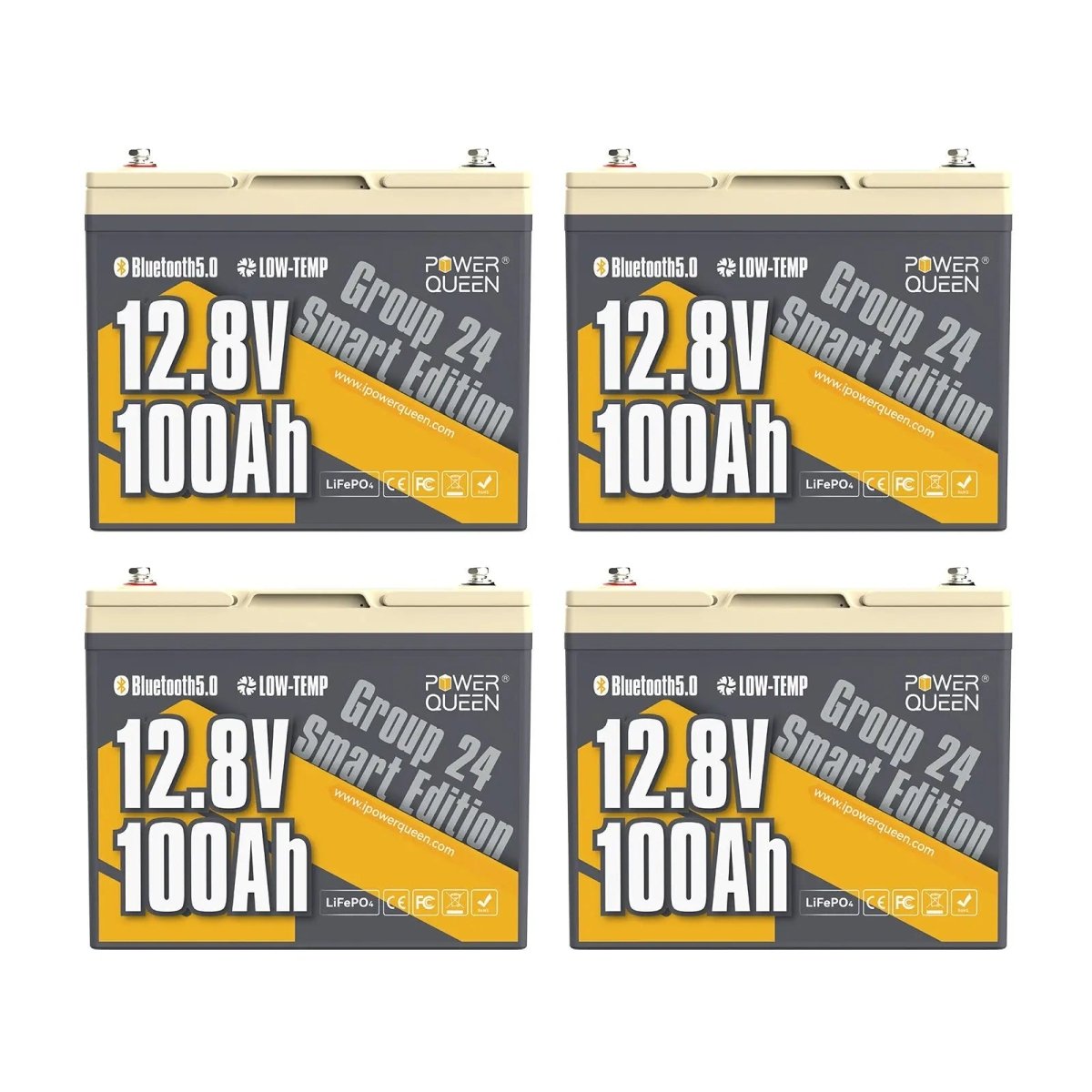

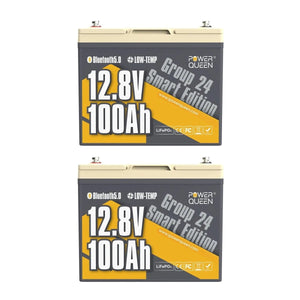

The 12V lithium battery from Power Queen supports configurations of up to 4 batteries in series and 4 in parallel, allowing you to create a battery system with a maximum of 16 units, offering up to 20.48kWh of capacity and 20.48kW of power.

Note: When connecting batteries in series or parallel, ensure the following conditions are met:

1. The batteries are identical with the same capacity (Ah) and Battery Management System (BMS) specifications (A).

2. All batteries are from the same brand, as different brands may have unique BMS configurations.

3. The batteries were purchased around the same time, ideally within one month of each other.
