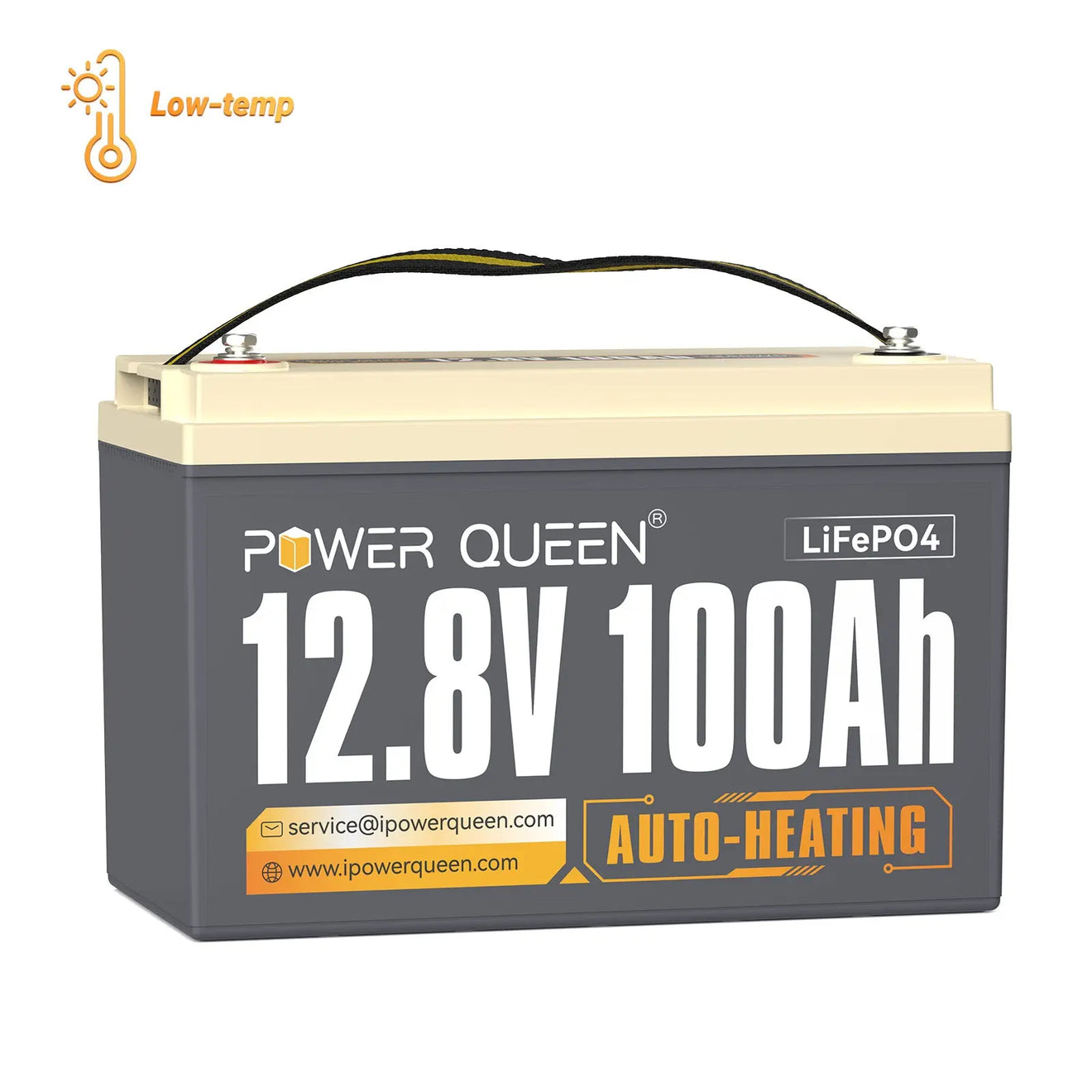

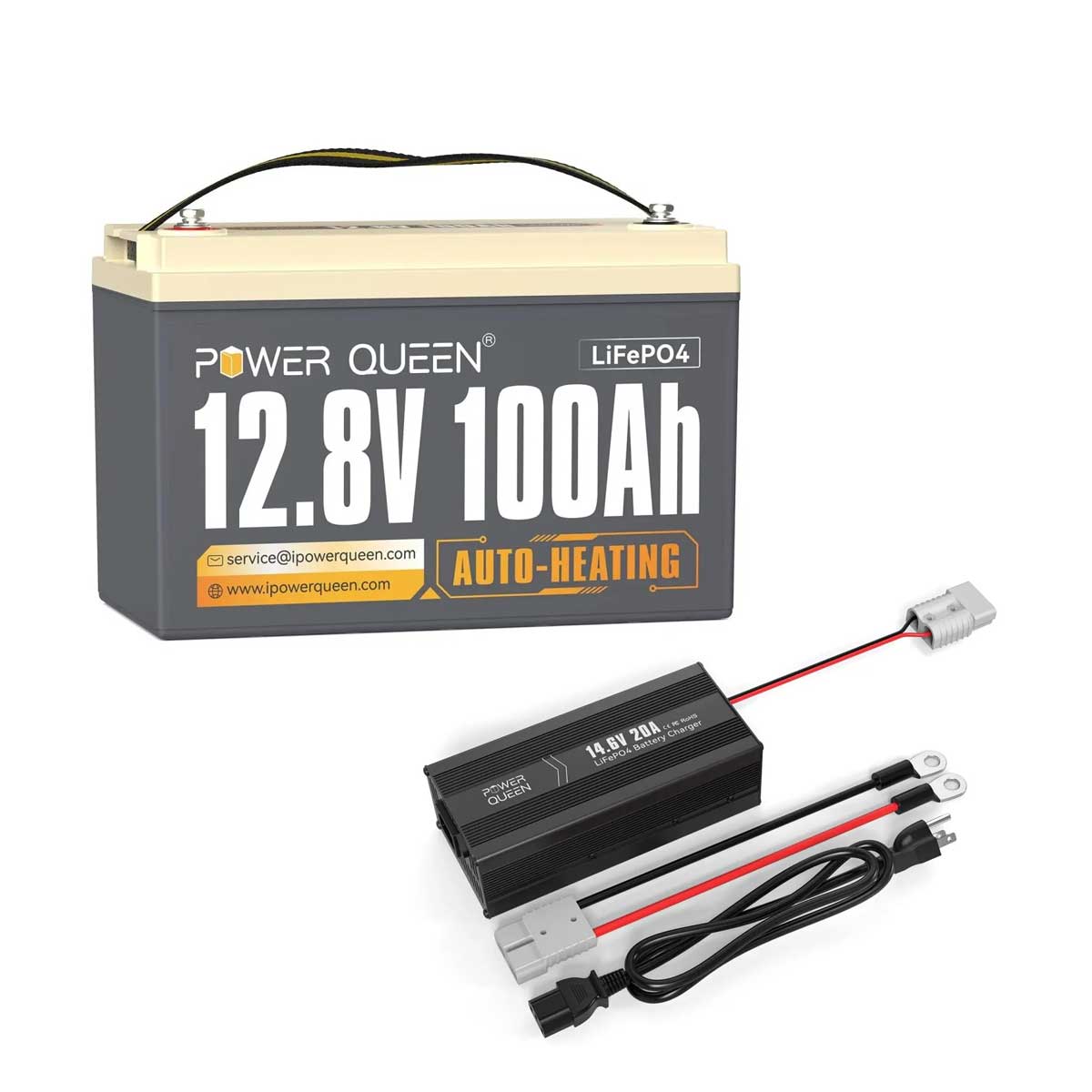

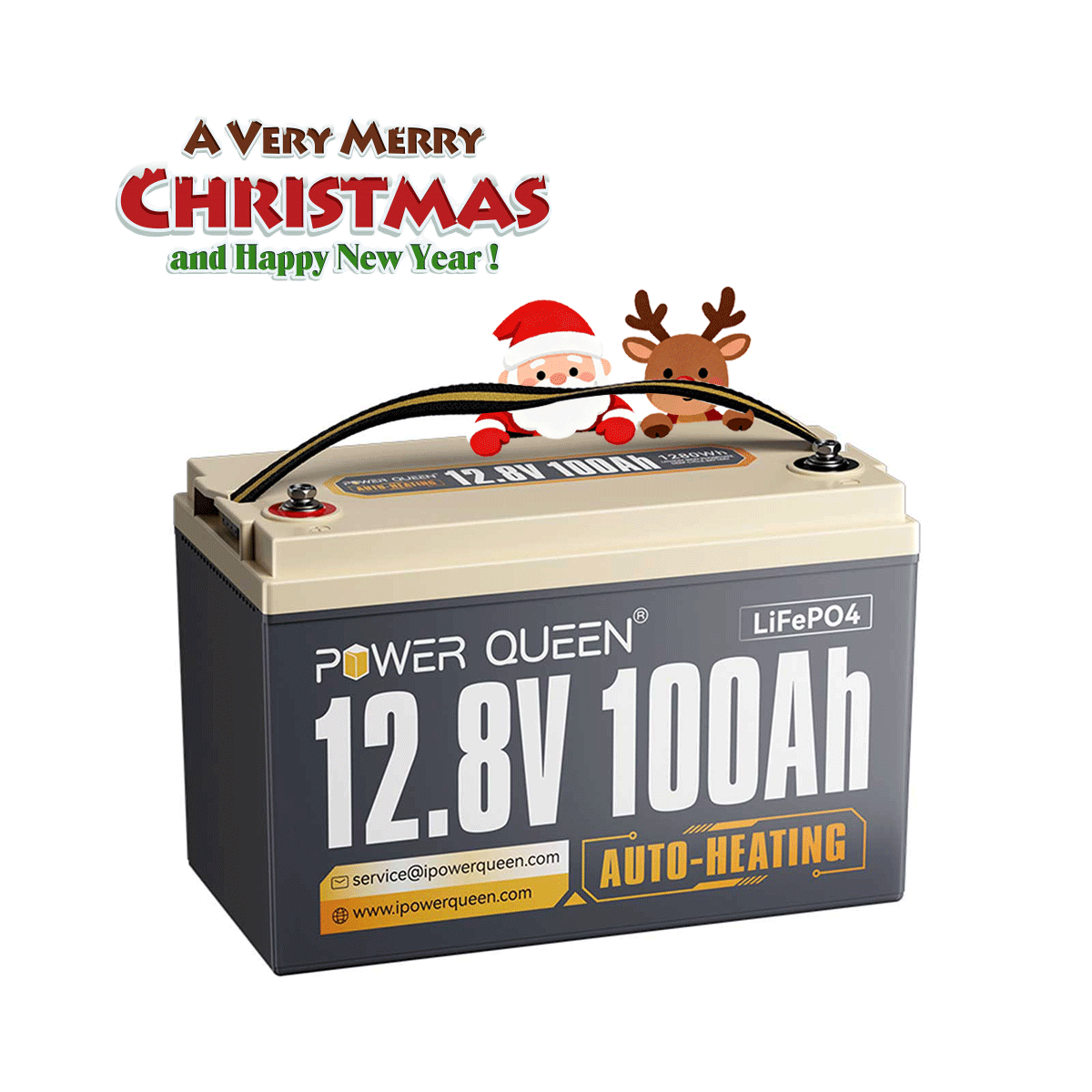

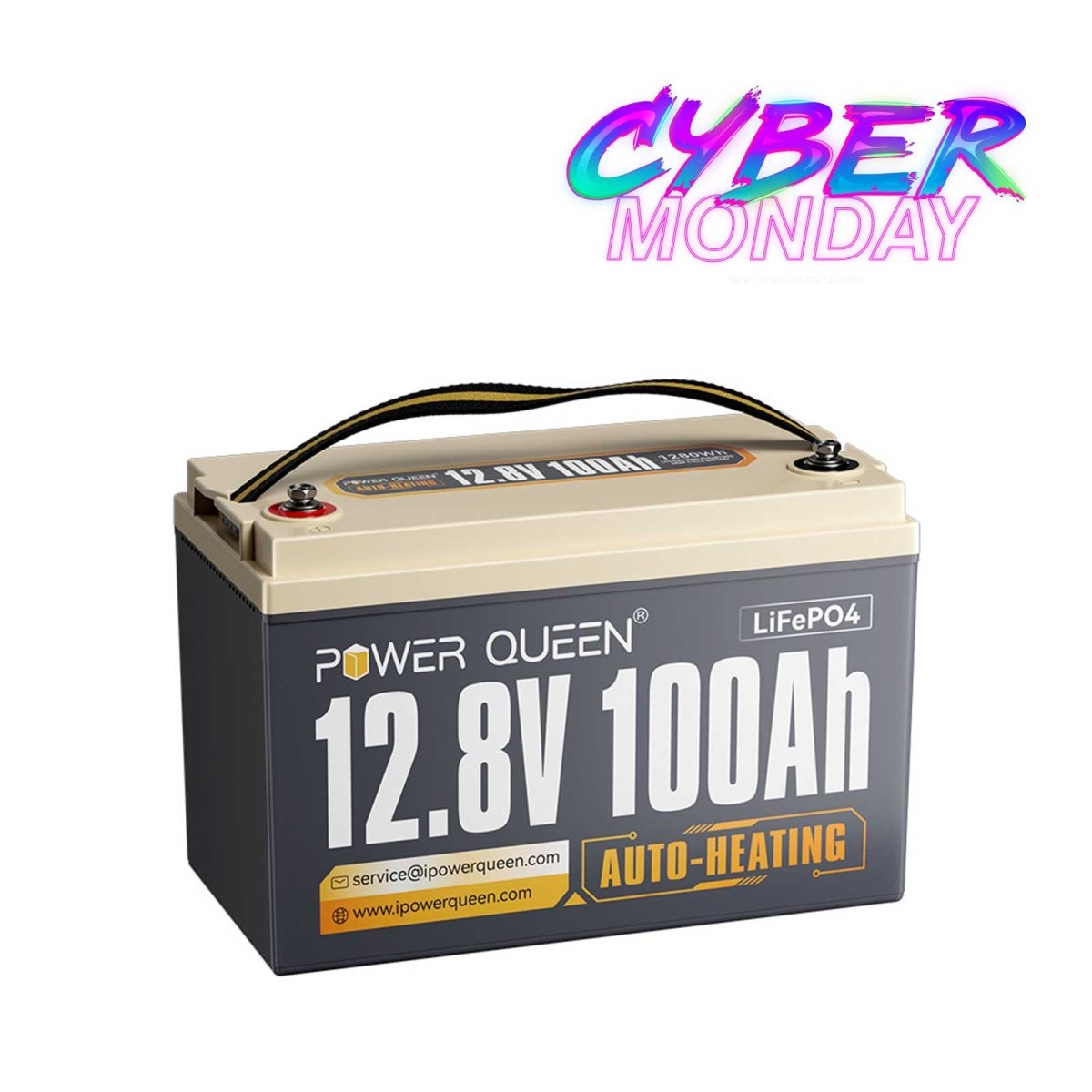

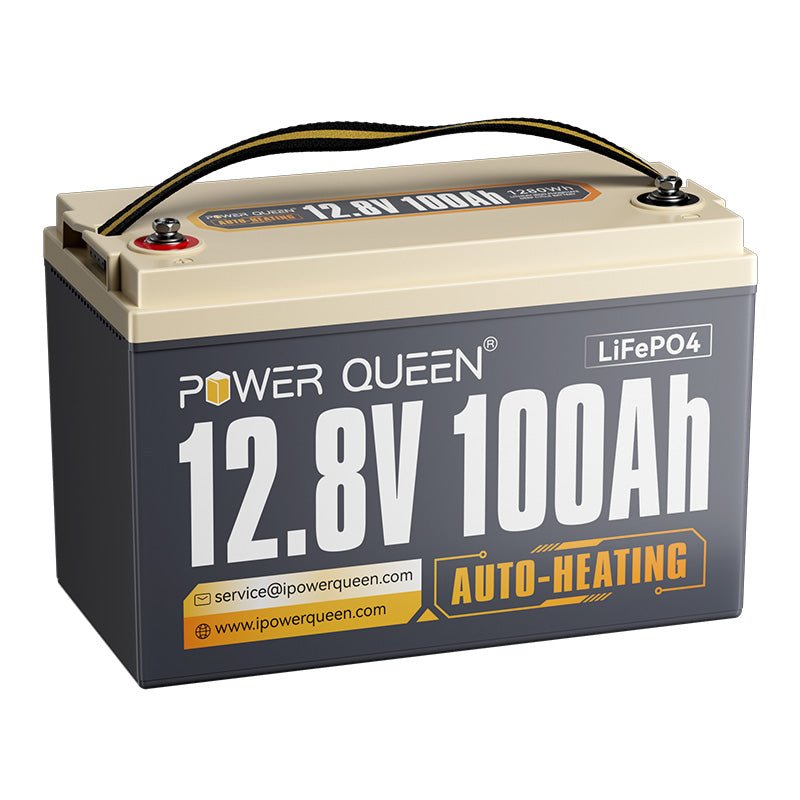

Power Queen 12V 100Ah Self-Heating Deep Cycle Lithium Battery
$249.99
$418.16

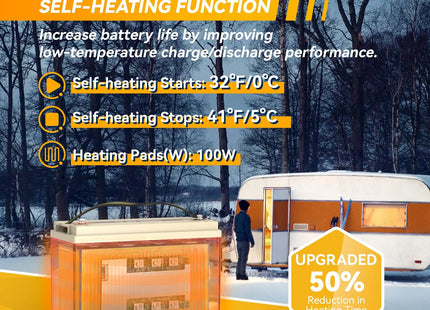

[2X Heating Efficiency, 100W Heated Lithium Pad] Experience automatic heating below 41°F (5°C), ensuring peak performance in cold conditions. Variable heating durations tailored to specific temperature ranges optimize efficiency, ranging from 30 to 100 minutes.

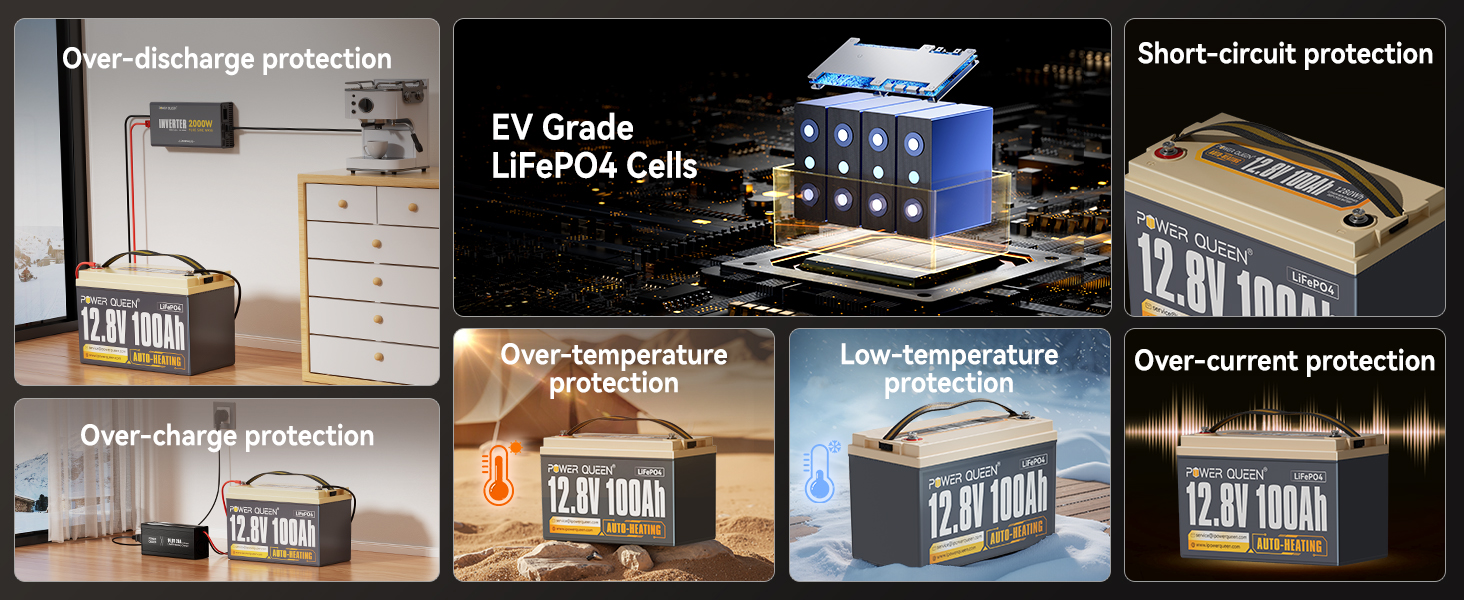

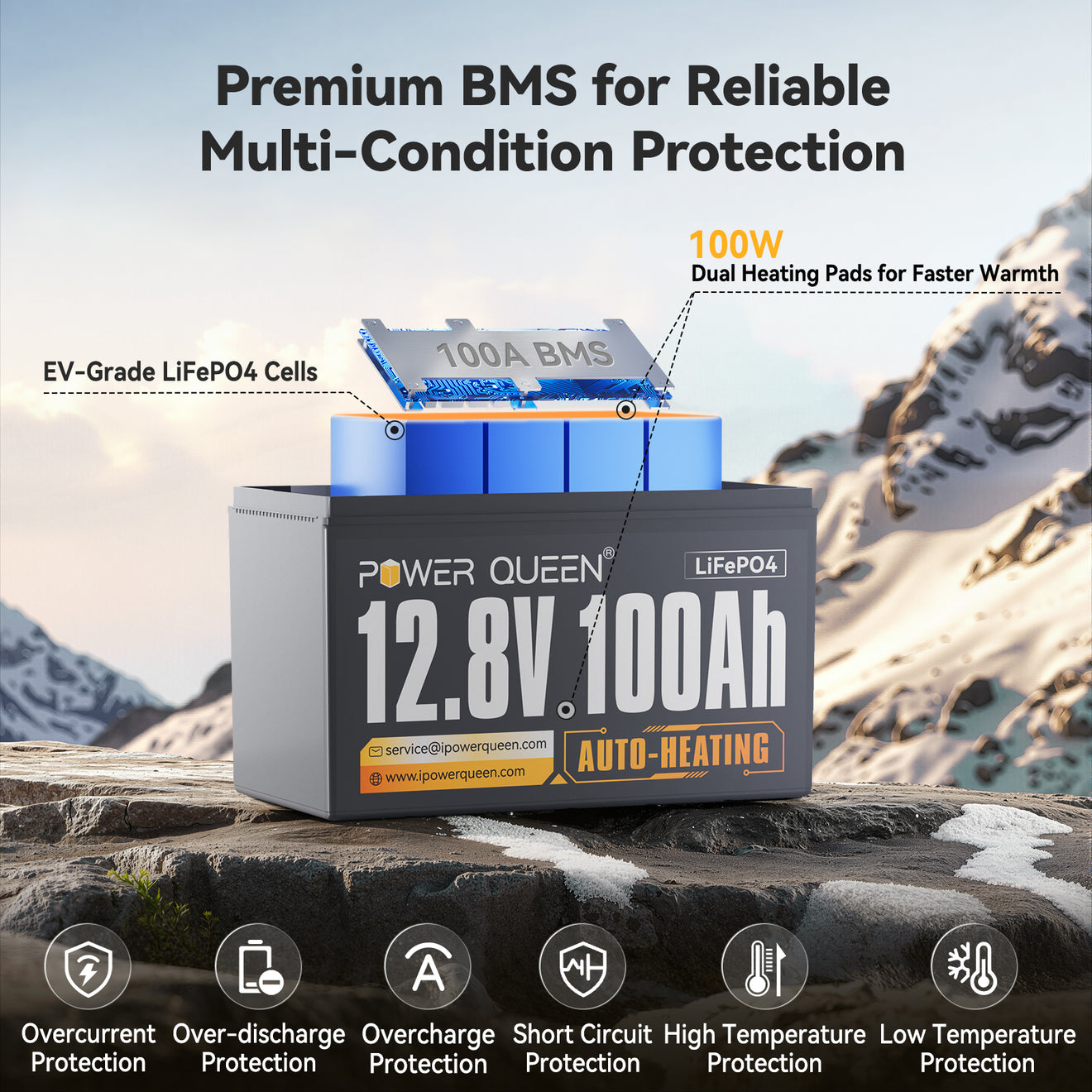

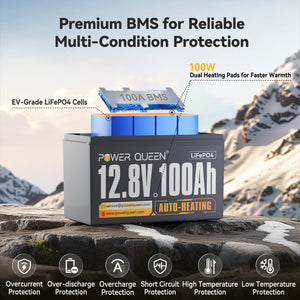

[Comprehensive Safety and Durability] Equipped with a 100A BMS, safeguarding against over-charging, over-discharging, over-current, over-temperature, and short-circuit incidents. Enhanced protection extends battery life, complementing the EV Grade A LiFePO4 cells, known for enduring over 4000 cycles at 100% Depth of Discharge (DOD).

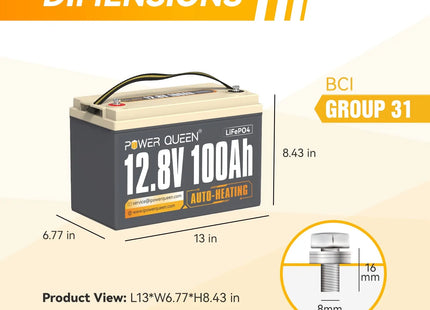

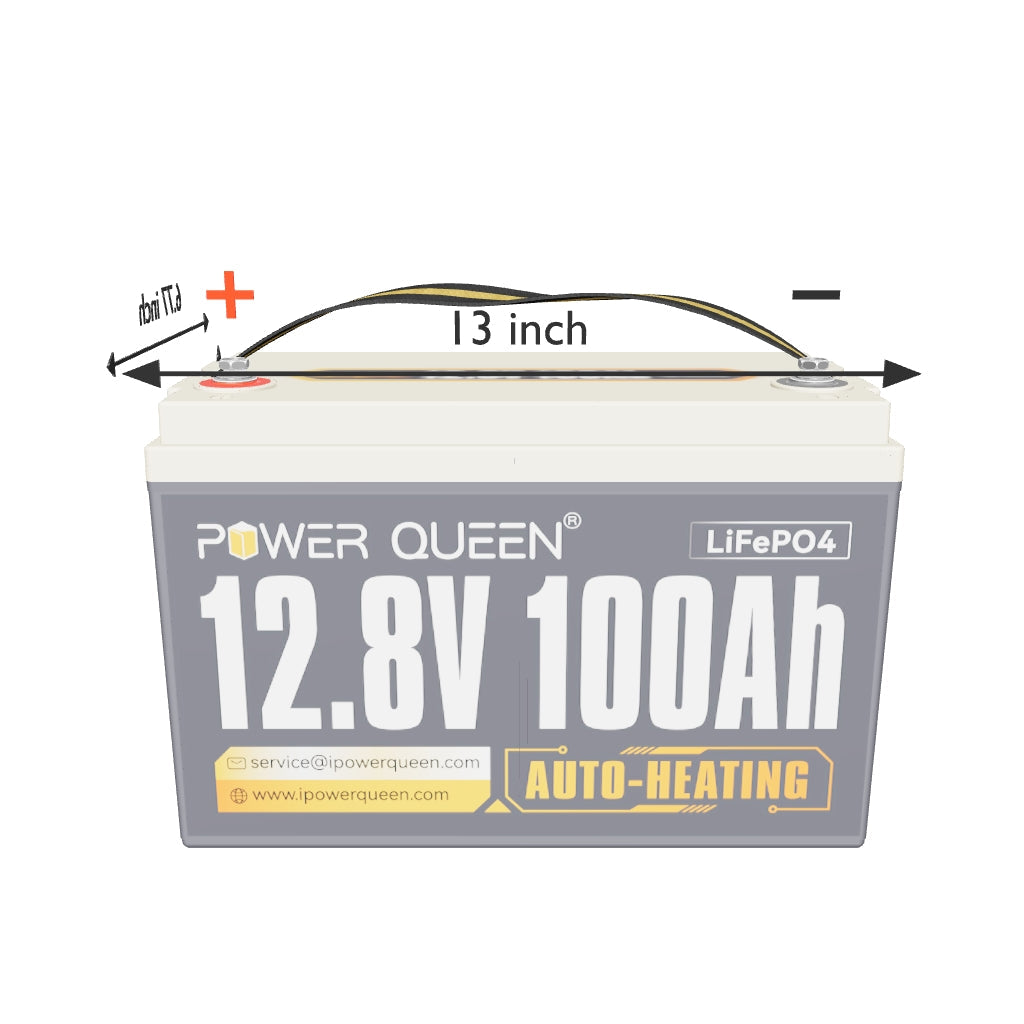

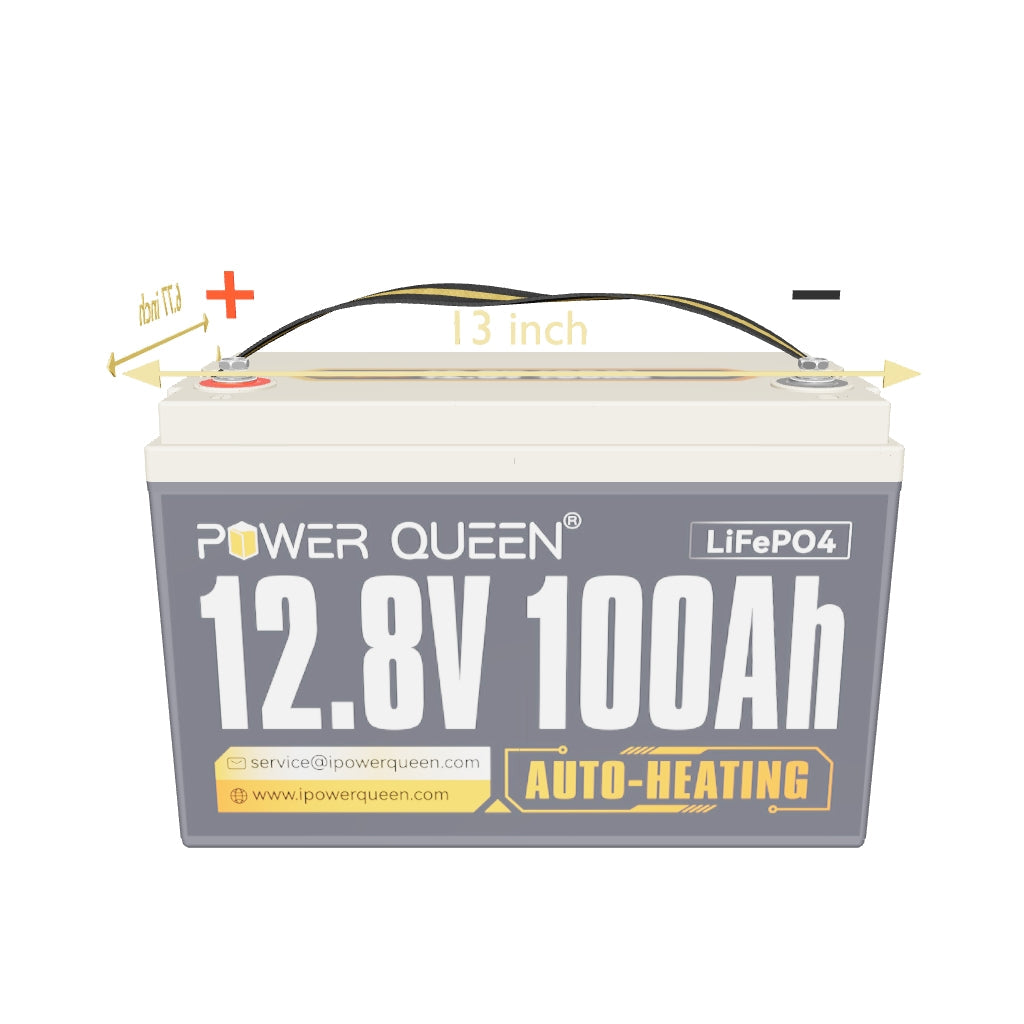

[High-Performance Specifications] Enjoy a robust capacity of 1280Wh and output power of 1280W, ensuring reliable and consistent power delivery for various applications. The battery's compact Group 31 size (L13 * W6.77 * H8.43 inches) offers versatility without compromising efficiency.
[Superior Versatility and Compatibility] Seamlessly recharge through multiple methods including LiFePO4 charger, Solar, and Generator, providing adaptability to different power sources. The battery's IP65 waterproof rating ensures reliability in diverse environments, making it ideal for trolling motors, RVs, solar systems, and home energy storage. Power Queen 12V 100Ah Self-Heating Lithium Battery matches the BCI Group 31 battery box.

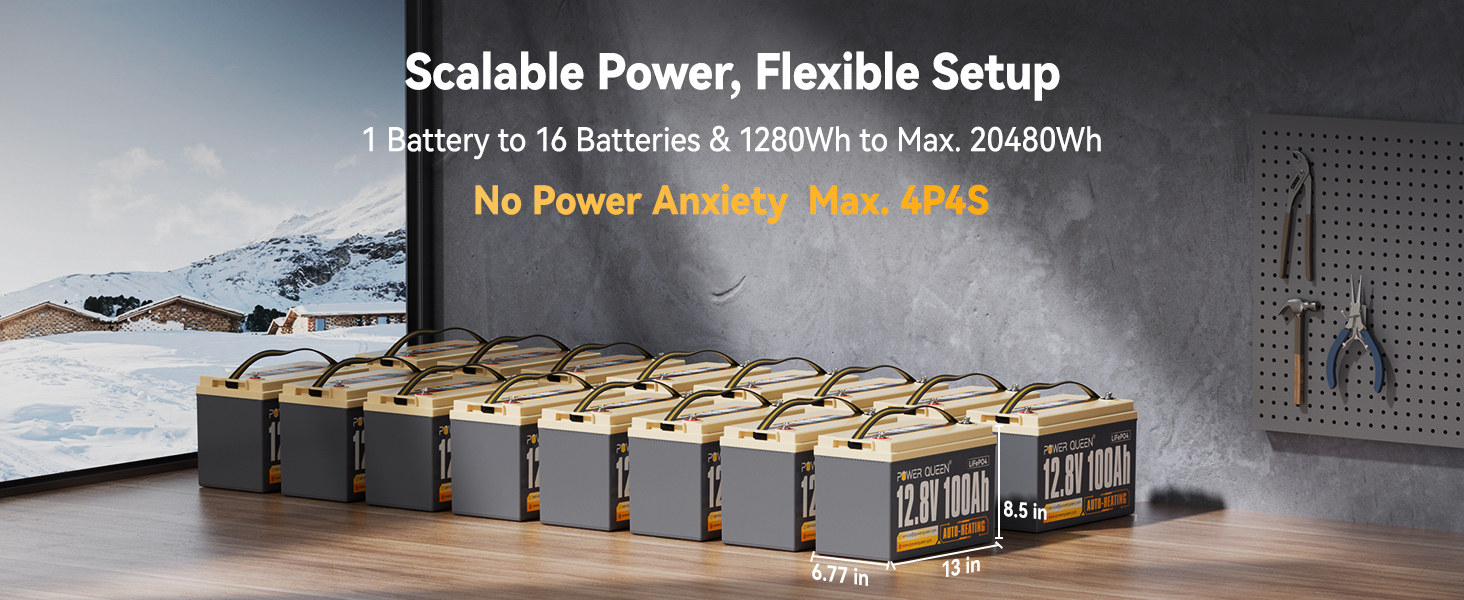

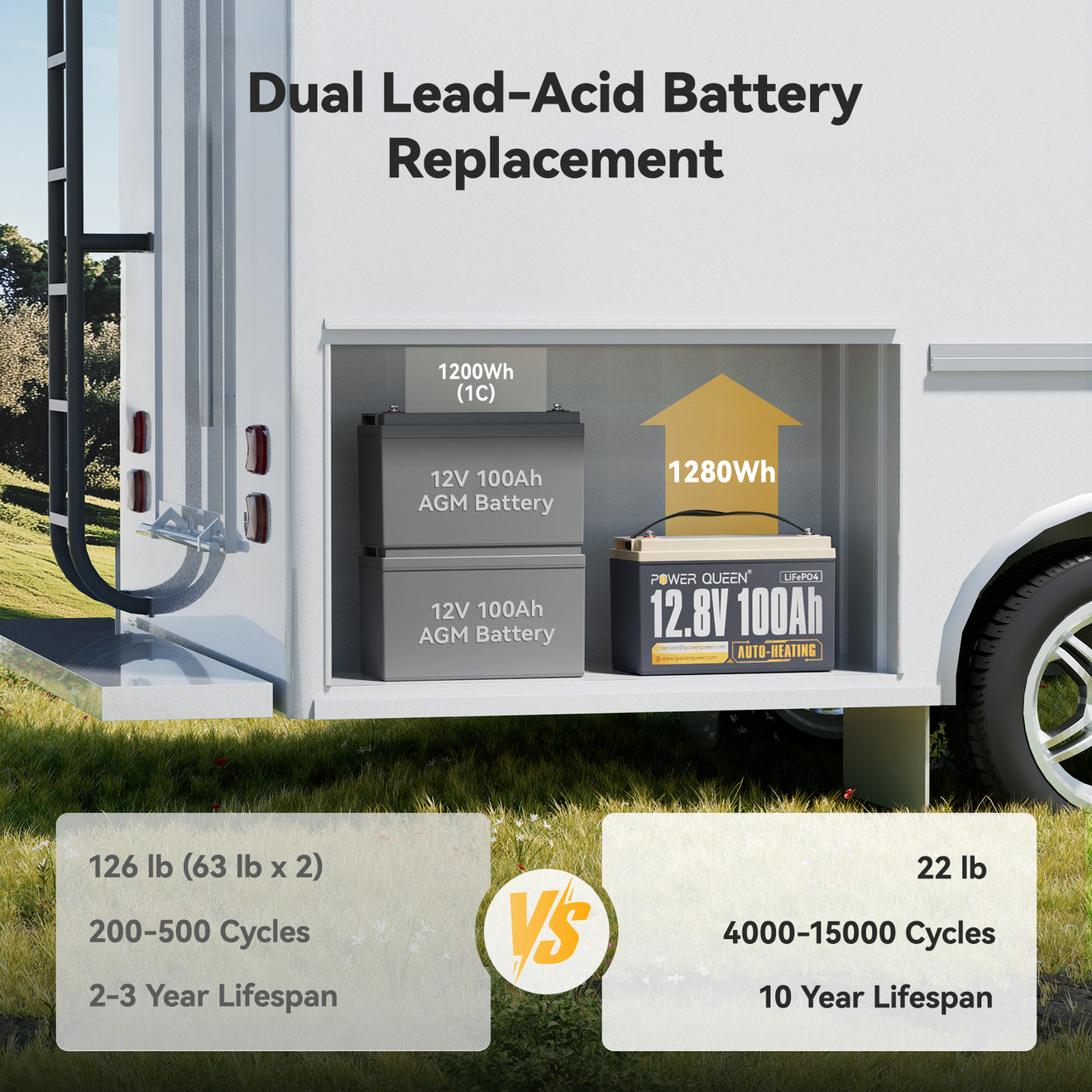

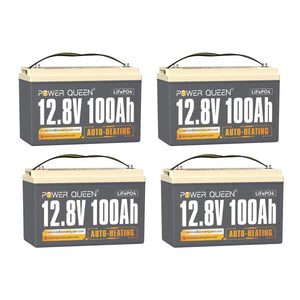

[Optimized Expandability and Adaptability] Scale your power needs effortlessly with expandability up to 4P4S for a 48V 400Ah system. With its drop-in replacement for lead-acid batteries, enjoy 1/5 the weight ((Compared to w/a 12V 200Ah lead acid battery)) while retaining the same power, delivering unparalleled efficiency and convenience for various applications.
Attention Please: This battery is NOT suitable to be used as a starter battery, golf cart battery, or for high-power applications such as water pumps, electric jacks, lifts, vacuum cleaners, four-wheel drive lawn mowers, etc., for more info please consult Power Queen: service@ipowerqueen.com
View more
Choose Products
Quantity
Frequently Purchased
Total
$249.99
$418.16
Fast Free Shipping
2-5 business days in the US
Easy Return & Exchange
Not satisfied? We offer a hassle-free 30-day return and exchange policy.
Hassle-Free Warranty
We offer a worry-free warranty for all products. For details, check the product page or contact us at service@ipowerqueen.com with your order number.
Lifetime Customer Support
We'll Always be There for You. If you have any questions or concerns, feel free to contact us at service@ipowerqueen.com.
Share
12V 100Ah Heat
$249.99
$418.16
Features
Specs
Compare
FAQ
Reviews
Specs
BATTERY
Cell Type：
LiFePO4
Warranty：
5 Years
Cycle Life：
4000 cycles at 100% DOD, 6000 cycles at 80% DOD, 15,000 cycles at 60% DOD
Nominal Voltage：
12.8V
Rated Capacity：
100Ah
Energy：
1280Wh
Max. Expansion (Parallel & Series)：
4P4S
Internal Resistance：
≤40mΩ
Certifications：
UL, FCC, CE, RoHS, UN38.3
BMS
BMS：
100A
Max. Continuous Output Power：
1280W
Max. Continuous Charge Current：
100A
Max. Continuous Discharge Current：
100A
CHARGE
Charge Method：
CC/CV
Charge Voltage：
14.4V ± 0.2V
Recommend Charge Current：
20A (0.2C)
TEMPERATURE
Charge Temperature：
-20℃ to 50℃ / -4℉ to 122℉
Discharge Temperature：
-20℃ to 60℃ / -4℉ to 140℉
Storage Temperature：
-10℃ to 50℃ / 14℉ to 122℉
Low-Temperature Protection：
√
Low-Temperature Charging Protection Auto Recovery：
5℃ / 41 ℉
SELF-HEATING
Heating Temperature：
-20℃ to 10℃ / -4℉ to 50℉
Approx. Heating Time：

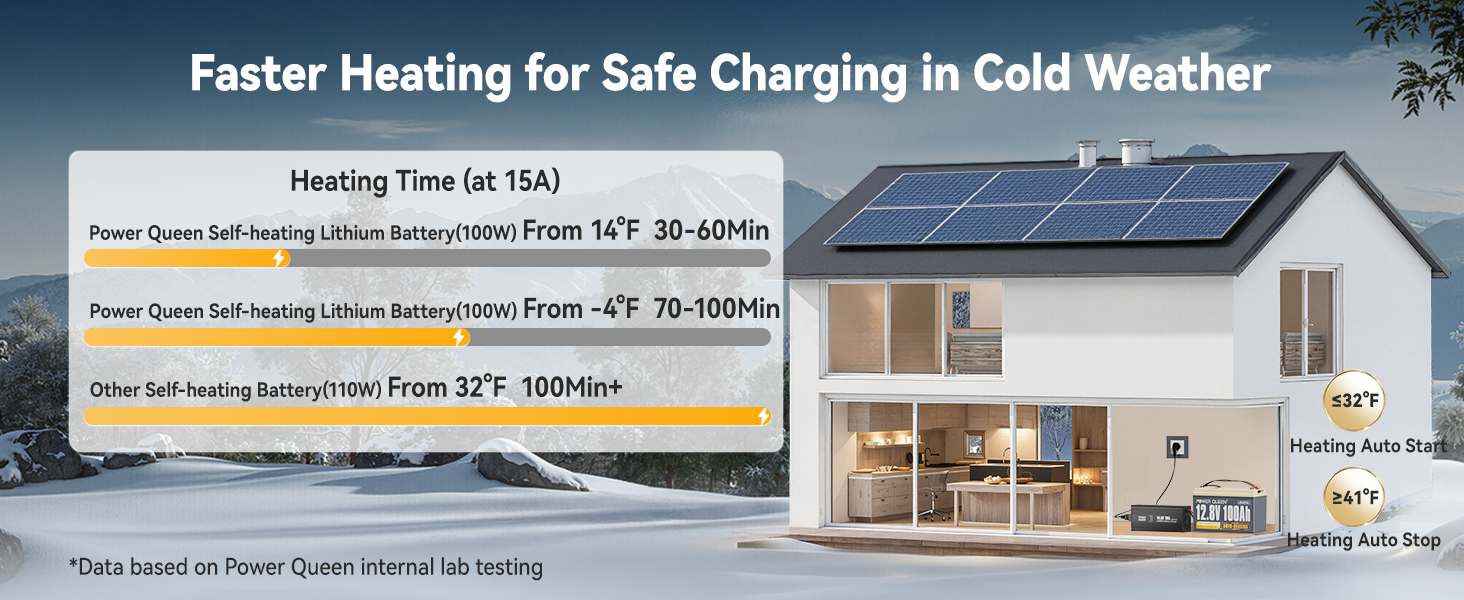

30-60mins (From -10°C / 14°F); 70-100mins (From -20°C / -4°F)
Required Minimum Charge Current for Heating Function：
10A
OTHERS
Terminals：
M8*16 mm
Weight Approx.：
23.32 lbs

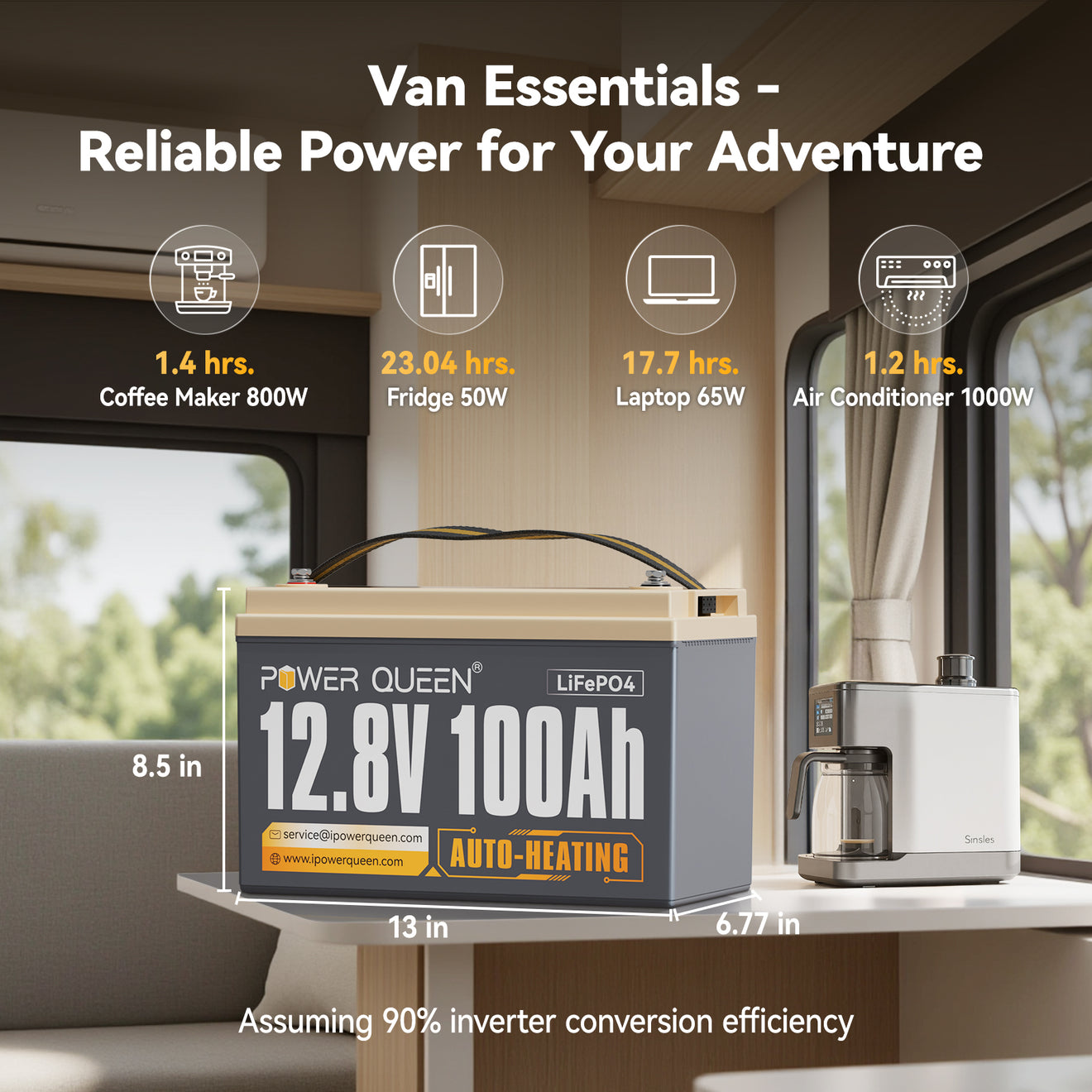

Size：
13*6.77*8.5 in
Housing Material：
ABS
Protection Class：
IP65
View all
Compare
| Product |
12V 100Ah Heat
$249.99
$418.16
|
12V 100Ah Group 31
$229.99
$276.90
|
12V 100Ah Group 24
$219.99
$257.12
|
|---|---|---|---|
| Cell Type |
LiFePO4
|
LiFePO4
|
LiFePO4
|
| Warranty |
5 Years
|
5 Years
|
5 Years
|
| Cycle Life |
4000 cycles at 100% DOD, 6000 cycles at 80% DOD, 15,000 cycles at 60% DOD
|
4000 cycles at 100% DOD, 6000 cycles at 80% DOD, 15,000 cycles at 60% DOD
|
4000 cycles at 100% DOD, 6000 cycles at 80% DOD, 15,000 cycles at 60% DOD
|
| Nominal Voltage |
12.8V
|
12.8V
|
12.8V
|
| Rated Capacity |
100Ah
|
100Ah
|
100Ah
|
| Energy |
1280Wh
|
1280Wh
|
1280Wh
|
| Max. Expansion (Parallel & Series) |
4P4S
|
4P4S
|
4P4S
|
| Internal Resistance |
≤40mΩ
|
≤40mΩ
|
≤40mΩ
|
| Certifications |
UL, FCC, CE, RoHS, UN38.3
|
UL-1973,FCC,CE,RoHS,UN38.3
|
UL, FCC, CE, RoHS, UN38.3
|
| BMS |
100A
|
100A
|
100A
|
| Max. Continuous Output Power |
1280W
|
1280W
|
1280W
|
| Max. Continuous Charge Current |
100A
|
100A
|
100A
|
| Max. Continuous Discharge Current |
100A
|
100A
|
100A
|
| Charge Method |
CC/CV
|
CC/CV
|
CC/CV
|
| Charge Voltage |
14.4V ± 0.2V
|
14.4V ± 0.2V
|
14.4V ± 0.2V
|
| Recommend Charge Current |
20A (0.2C)
|
20A (0.2C)
|
20A (0.2C)
|
| Charge Temperature |
-20℃ to 50℃ / -4℉ to 122℉
|
0℃ to 50 ℃ / 32 ℉ to 122 ℉
|
0℃ to 50℃ / 32℉ to 122℉
|
| Discharge Temperature |
-20℃ to 60℃ / -4℉ to 140℉
|
-20℃ to 60℃ / -4℉ to 140℉
|
-20℃ to 60℃ / -4℉ to 140℉
|
| Storage Temperature |
-10℃ to 50℃ / 14℉ to 122℉
|
-10℃ to 50 ℃ / 14 ℉ to 122 ℉
|
-10℃ to 50℃ / 14℉ to 122℉
|
| Low-Temperature Protection |
√
|
/
|
/
|
| Low-Temperature Charging Protection Auto Recovery |
5℃ / 41 ℉
|
/
|
/
|
| Heating Temperature |
-20℃ to 10℃ / -4℉ to 50℉
|
/
|
/
|
| Approx. Heating Time |
30-60mins (From -10°C / 14°F); 70-100mins (From -20°C / -4°F)
|
/
|
/
|
| Required Minimum Charge Current for Heating Function |
10A
|
/
|
/
|
| Terminals |
M8*16 mm
|
M8*16 mm
|
M8*16 mm
|
| Weight Approx. |
23.32 lbs
|
22.05 lbs
|
22.16 lbs
|
| Size |
13*6.77*8.5 in
|
13*6.77*8.5 in (group 31 size)
|
10.24*6.61*8.27 in
|
| Housing Material |
ABS
|
ABS
|
ABS
|
| Protection Class |
IP65
|
IP65
|
IP65
|
FAQ
When should I need a self-heating lithium battery?
Many of our customers have used this battery for winter activities like skiing and ice fishing. While you can use and discharge Power Queen lithium batteries in cold temperatures, you might want to consider a self-heating battery if you plan to charge it in freezing conditions.
How does the self-heating work?

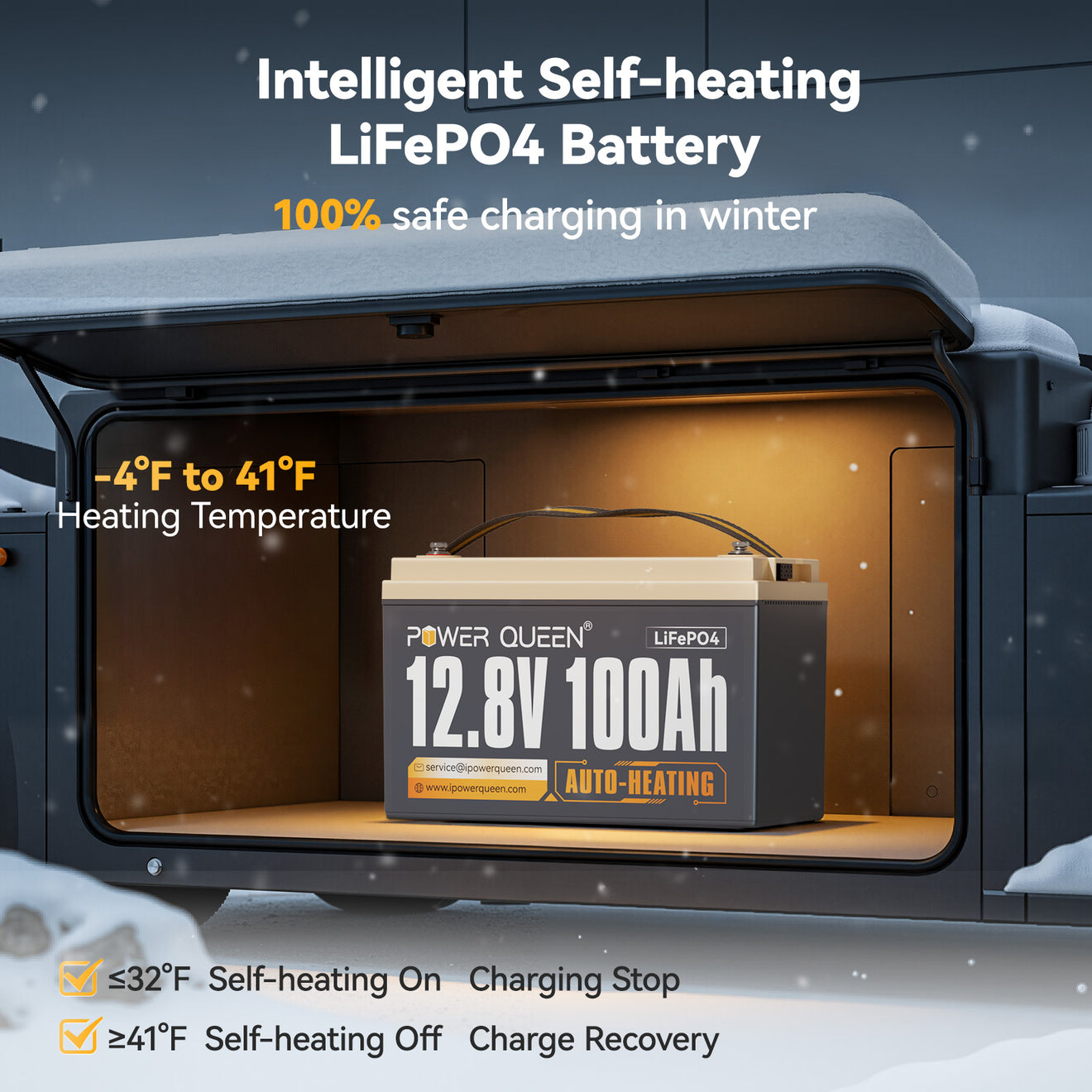

The auto self-heating function is activated by the BMS when the battery is connected to a charger and the temperature is between -20°C and 5°C (-4°F and 41°F). The heating process will stop once the battery temperature reaches 10°C (50°F).
What are the differences between Self-Heating and Low-temperature protection batteries?
These two series primarily address the challenge of charging LiFePO4 lithium batteries in cold weather. The main difference between the Low-Temperature series and the Self-Heating series lies in the automatic Battery Management System (BMS) heating module. The Self-Heating series allows the battery to self-warm during charging without any user intervention. In contrast, the Low-Temperature Protection series, such as the Power Queen 12V 100Ah TM and Power Queen 12V 200Ah Plus, will automatically stop charging when the temperature falls below 0°C (32°F). To resume charging, you need to take measures like placing the battery in a warmer environment until it reaches 5°C (41°F).
Does the lithium battery charge itself while heating?
No. The charging will start after the lithium battery heats itself to 10℃ (50℉).
Can the Power Queen 100Ah self-heating lithium battery discharge while heating?
Yes, the Power Queen 12V 100Ah self-heating LiFePO4 lithium battery can discharge while it is heating, provided it has power. However, we do not recommend discharging the battery during the heating process, as this could adversely affect its performance and lifespan.
Can I add heating facilities to help with external heating?
External heating only heats the casing, not the battery cells. In -20°C conditions, external heating for two hours raises the battery cells to 5°C, but the lead-acid casing temperature rises to 70-80°C. Therefore, external heating is not recommended as the actual cell temperature cannot be determined.
How much does a Power Queen group 31 battery weight?
Power Queen 12V 100Ah Self Heating LiFePO4 Lithium Battery, corresponding to group 31 battery size, weighs 21.61 lbs, which is significantly lighter than 12V 100Ah lead-acid batteries on the market.
Can I charge Self heating Lithium batteries in cold weather (under freezing temperatures)?
Yes. The self-heating lithium battery can charge securely at -20℃ to 50℃ (-4℉ to 122℉). The built-in self-heating pad will automatically begin heating the battery.
Can I couple a Bluetooth Module with this battery to monitor its status on my phone?
No. This battery is incompatible with the Bluetooth module. To monitor the status of your batteries, utilize a 500A Battery Monitor With Shunt.
Read the article What Is A Battery Monitor for more information.
What should I do if my 12V 100Ah lithium-ion battery shuts down owing to a low state of charge (SOC)?
If your battery totally shuts down owing to low SOC, disconnect all loads immediately and recharge it as quickly as possible to avoid harm.
Monitoring your 12V lithium battery's SOC and charging at 50% SOC allows you to optimize useful energy every cycle while minimizing battery strain. This meticulous SOC balancing extends the life of your lithium deep cycle battery greatly.
