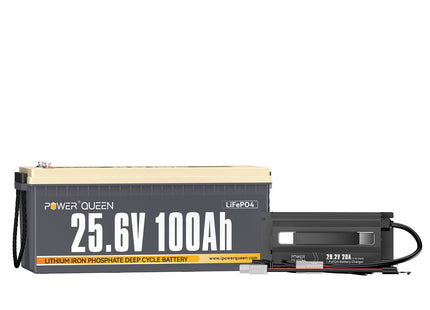

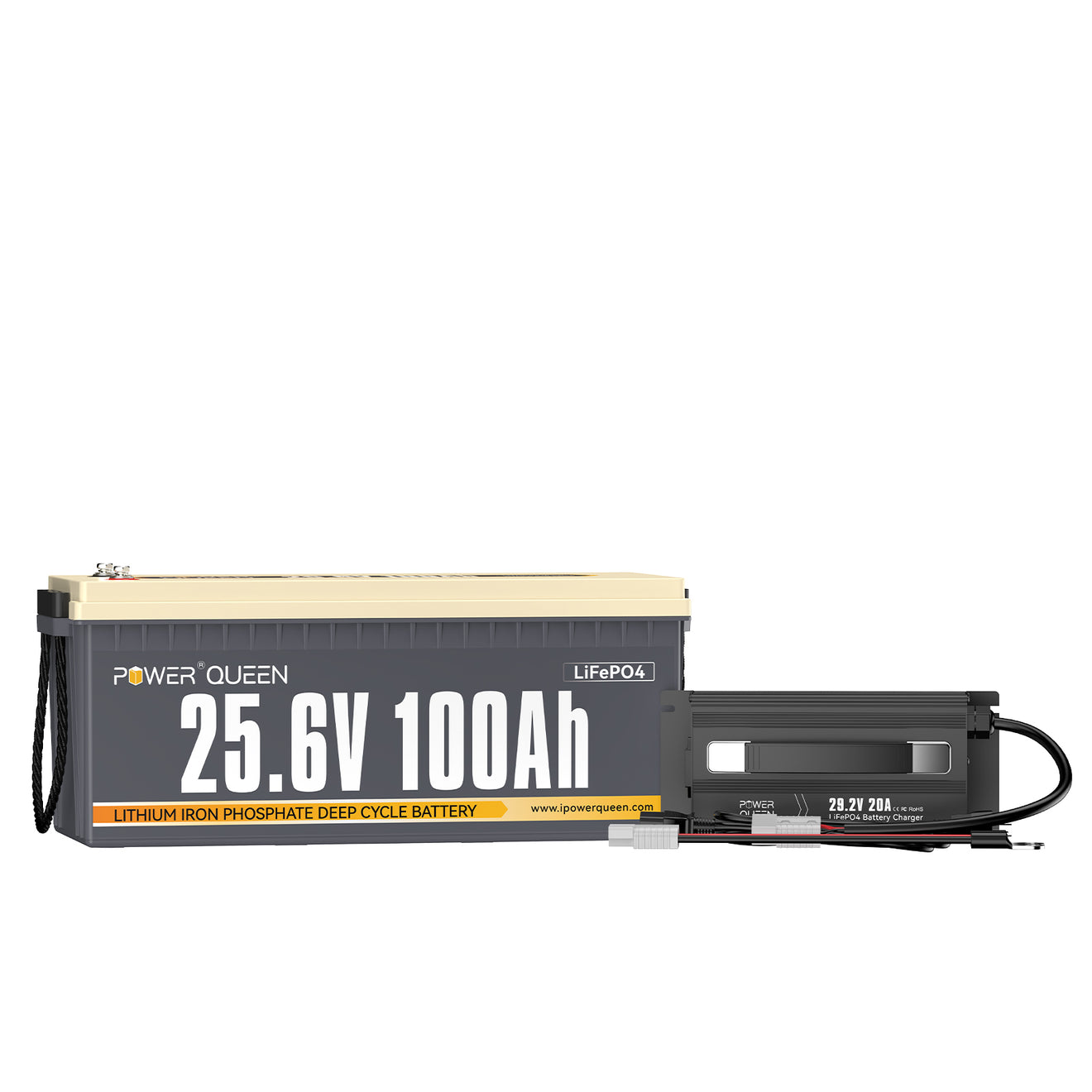

Name: Power Queen 29.2V 20A Charger Kit With 24V 100Ah Deep Cycle Lithium Battery
Brand: Power Queen US
SKU: P24V100-100-Basic-8-A160 +P24V20A-BCHA-X
Price: 523.98 USD

Power Queen 29.2V 20A Charger Kit With 24V 100Ah Deep Cycle Lithium Battery

Product form

Power Queen 29.2V 20A Charger Kit With 24V 100Ah Deep Cycle Lithium Battery

⬇️Description

❇️Enhanced 100A BMS with multi-layer protection, featuring 8 high-density, stable EV-grade LiFePO4 cells.

❇️2560Wh of increased capacity, offering 2X the energy density of 12V 100Ah lithium battery .

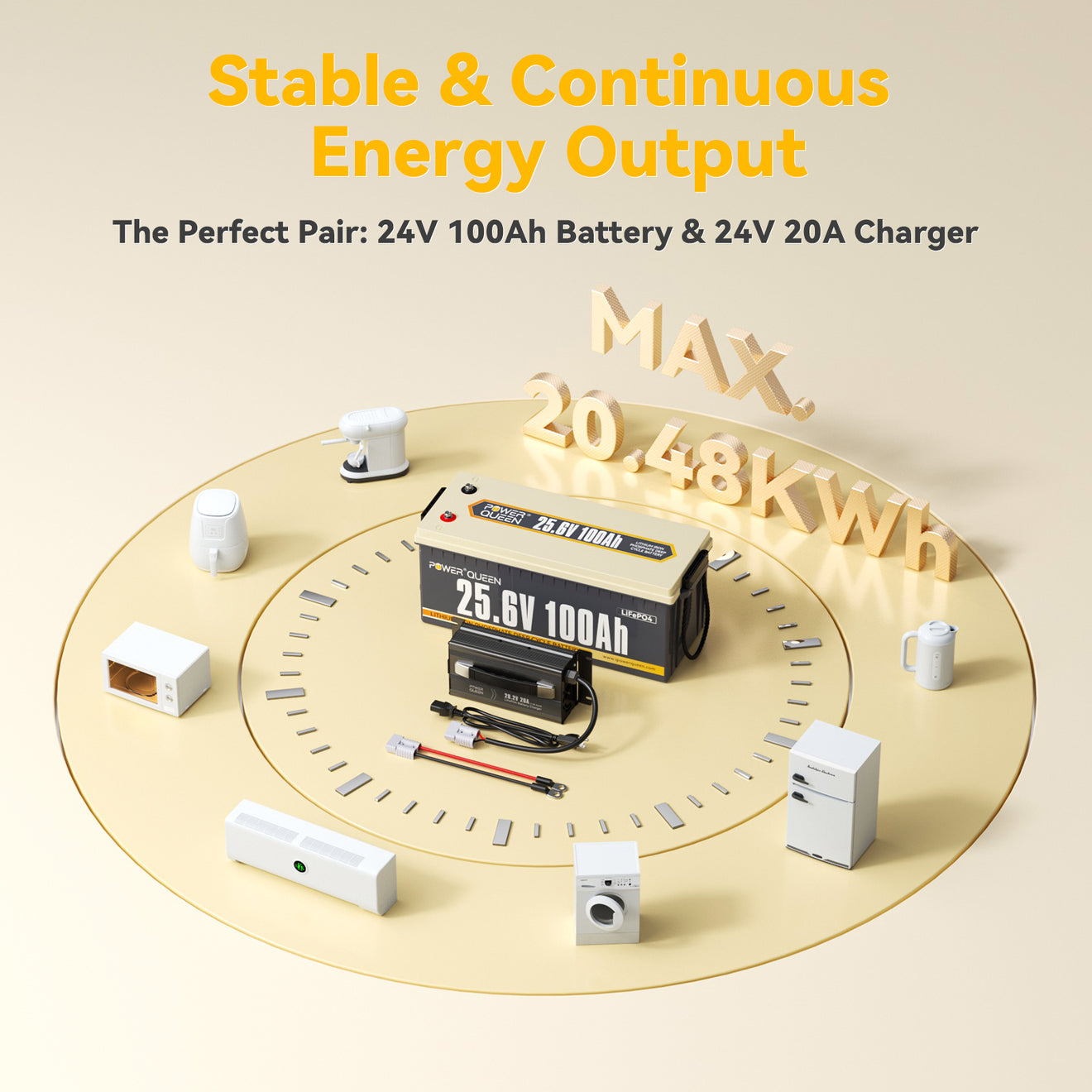

❇️Powerful 2560W output, with flexible series and parallel connections, expandable up to 20.48kWh (4P2S).

❇️Replaces two 12V 100Ah lithium batteries with the same capacity in a compact design.

❇️Robust 100A BMS protection with IP65 rating, safeguarding against overcharging, short circuits, and more.

❇️EV-grade LiFePO4 cells：4000+Cycle（100%DOD)，6000+Cycle（80%DOD)，15000+Cycle(60%DOD）.

$523.98

Free shipping in the US

3-7 working days in the US

Easy return & exchange

Not satisfied? We offer a hassle-free 30-day return and exchange policy.

Worry-free payment

FEATURES
FAQ

FAQ

Q: Are Power Queen LiFePO4 batteries safe?

Yes, LiFePO4 is an inherently safe chemistry and is often regarded as the most stable lithium battery type on the market. Power Queen lithium batteries are UL certified, indicating that they fulfill the highest criteria of safety and sustainability. All Power Queen LiFePO4 batteries include an internal Battery Management System (BMS) that protects the battery cells from damage caused by under-voltage during discharge, over-voltage during charge, over-current during discharge, over-temperature during both charge and discharge, and short circuits. Furthermore, Power Queen LiFePO4 lithium batteries have been rigorously tested to ensure that they are safe from fire and electric shock, even in tough situations.

Q: Can I use Power Queen LiFePO4 Lithium batteries as starting batteries?

No, Power Queen LiFePO4 lithium batteries are designed solely for energy storage and should not be used as starting batteries. Please do not use them to start any devices.

For more information on the differences between these two types of batteries, read our blog post: "Deep Cycle vs. Starting Battery."

Q: How do I store Power Queen LiFePO4 lithium batteries?

It is recommended to store Power Queen LiFePO4 batteries at 50% state of charge (SOC). If the batteries are stored for long periods, cycle the batteries at least every 6 months. Recommended storage environment: 10℃～35℃ (50℉～95℉), 45%RH～75％RH.

Q: What size of the trolling motor suits 24V 100Ah lithium battery?

70 ~ 100 lb trolling motor suits 24V 100Ah lithium battery.

Q: Can I charge Power Queen LiFePO4 lithium batteries with solar panels?

Yes, you can charge Power Queen LiFePO4 lithium batteries with solar panels. Here are 3 reliable ways to charge:

1. Using Solar Panels

The Power Queen 24V 100Ah battery can be fully charged by in one day (with effective sunshine 4.5hrs/day) by 800W solar panels. It may take more than one day to fully charge the battery by ≥800W solar panels since the duration and intensity of light would be a great factor for their charging efficiency.

2. Generator/Alternator

If the alternator or generator supports DC output, a DC-to-DC charger is needed to connect the battery to the generator; if your alternator or generator supports AC output, please add a suitable battery charger to connect the battery and the generator according to our recommendations.

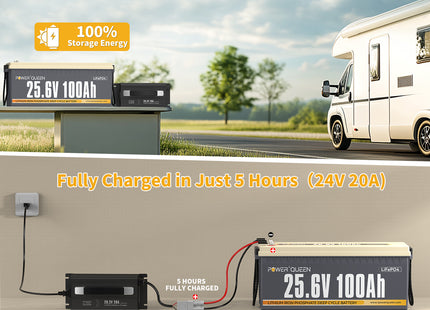

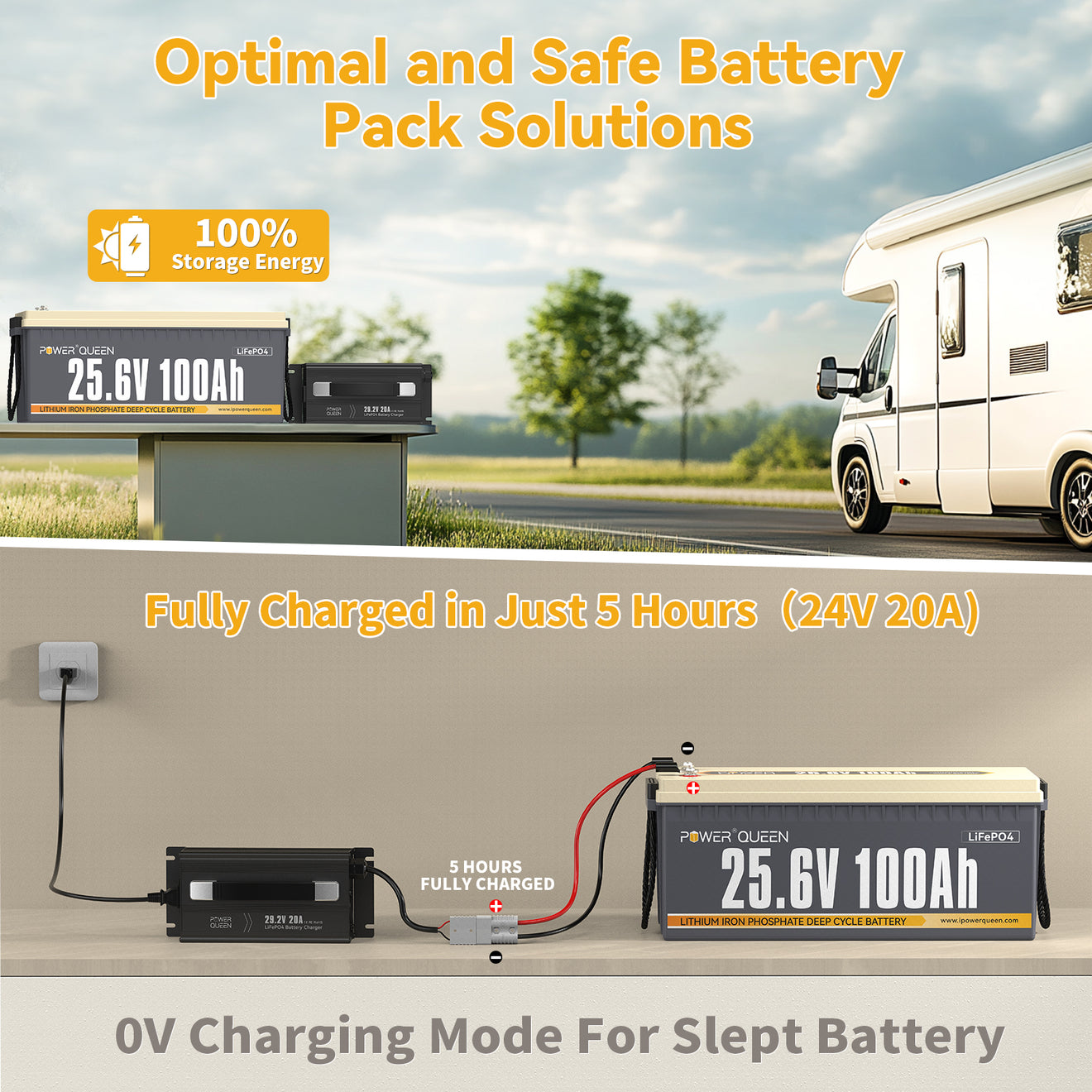

The Recommended Charging Voltage: 28.4V - 29.2V. The Recommended Charging Current: ① 20A (0.2C): the battery will be fully charged in around 5 hrs to 100% capacity; ② 50A (0.5C): the battery will be fully charged in around 2 hrs to around 97% capacity.

3. LiFePO4 Smart Chargers

To charge 24V battery, it is recommended to use 29.2V battery charger.

The Recommended Charging Voltage: 28.4V - 29.2V.

The Recommended Charging Current: ① 20A (0.2C): the battery will be fully charged in around 5 hrs to 100% capacity; ② 50A (0.5C): the battery will be fully charged in around 2 hrs to around 97% capacity.
