SPECS
BATTERY
Cell Type:
LiFePO4
Warranty:
5 Years
Cycle Life:
4000 cycles at 100% DOD, 6000 cycles at 80% DOD, 15,000 cycles at 60% DOD
Nominal Voltage:
12.8V
Rated Capacity:
100Ah
Energy:
1280Wh
Max. Expansion (Parallel & Series):
4P4S
Internal Resistance:
≤40mΩ
Certifications:
UL, FCC, CE, RoHS, UN38.3
BMS
BMS:
100A
Max. Continuous Output Power:
1280W
Max. Continuous Charge Current:
100A
Max. Continuous Discharge Current:
100A
Max. Discharge Current 5 Seconds:
280A
CHARGE
Charge Method:
CC/CV
Charge Voltage:
14.4V ± 0.2V
Recommend Charge Current:
20A (0.2C)
TEMPERATURE
Charge Temperature:
0℃ to 50℃ / 32℉ to 122℉
Discharge Temperature:
-20℃ to 60℃ / -4℉ to 140℉
Storage Temperature:
-10℃ to 50℃ / 14℉ to 122℉
Low-Temperature Protection:
/
OTHERS
Terminals:

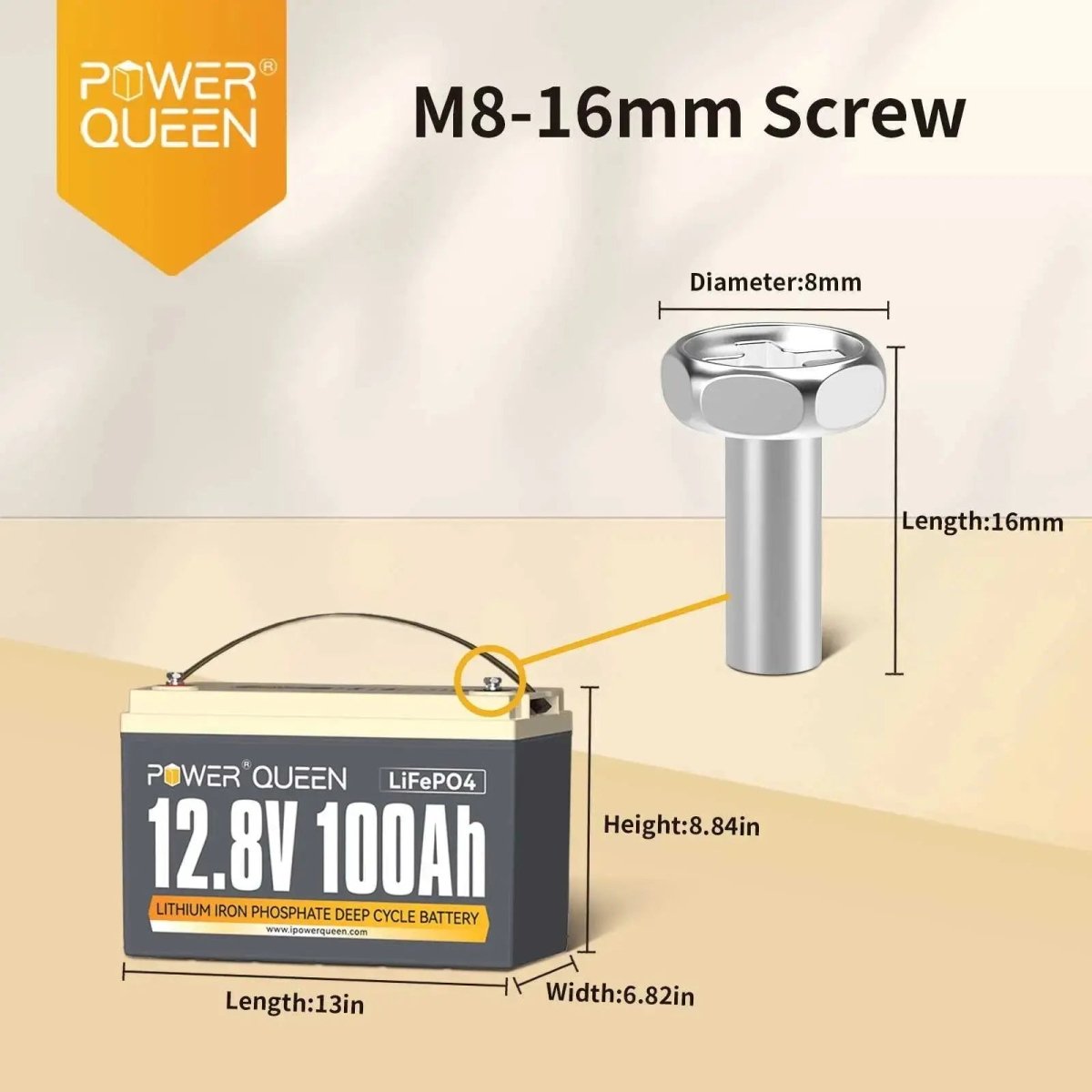

M8 bolts
Weight Approx.:
24.25 lbs
Size:

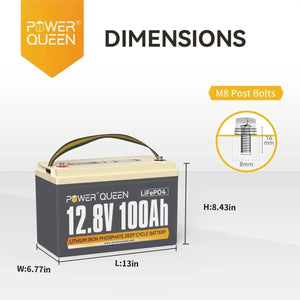

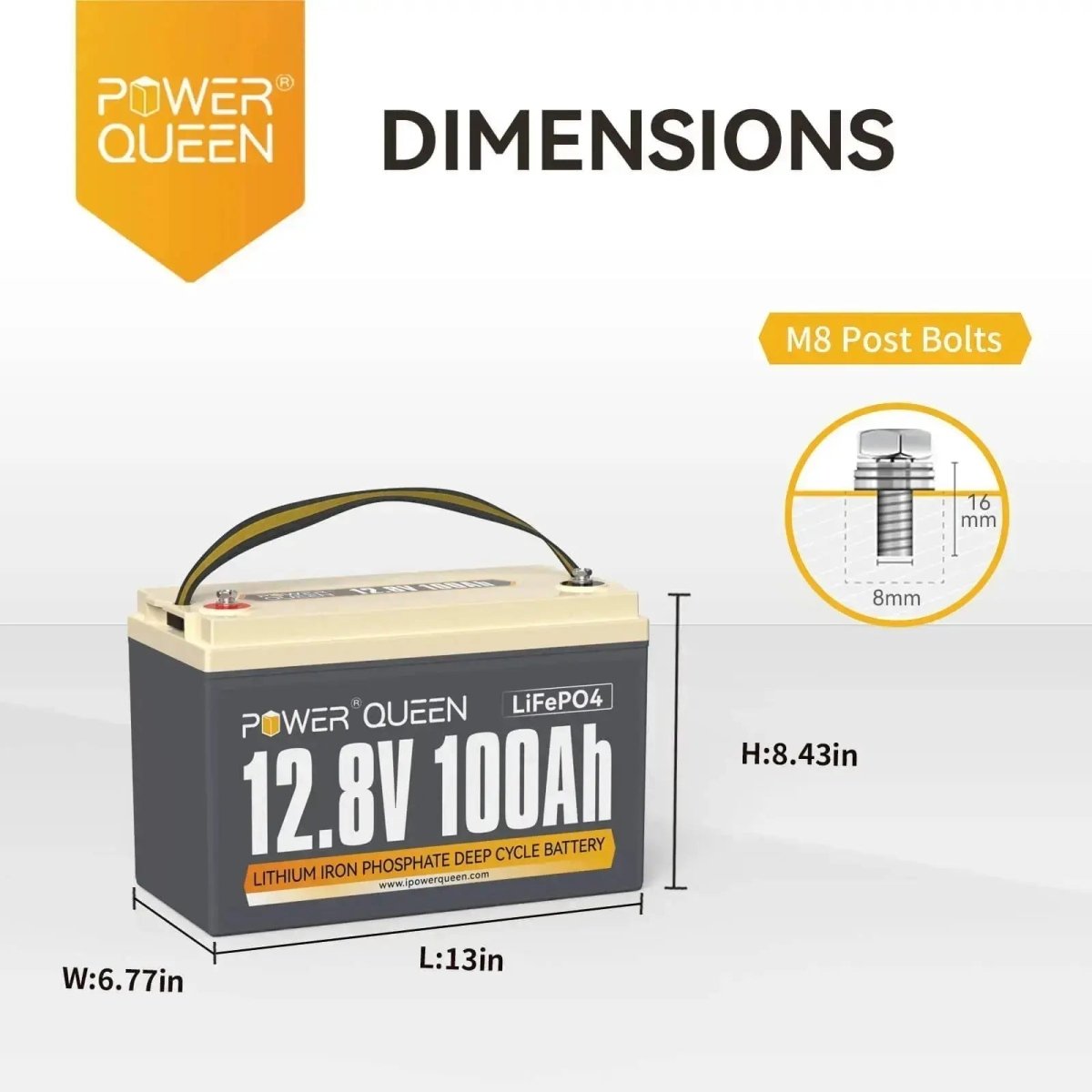

13*6.77*8.43 in
Housing Material:
ABS
Protection Class:
IP65
