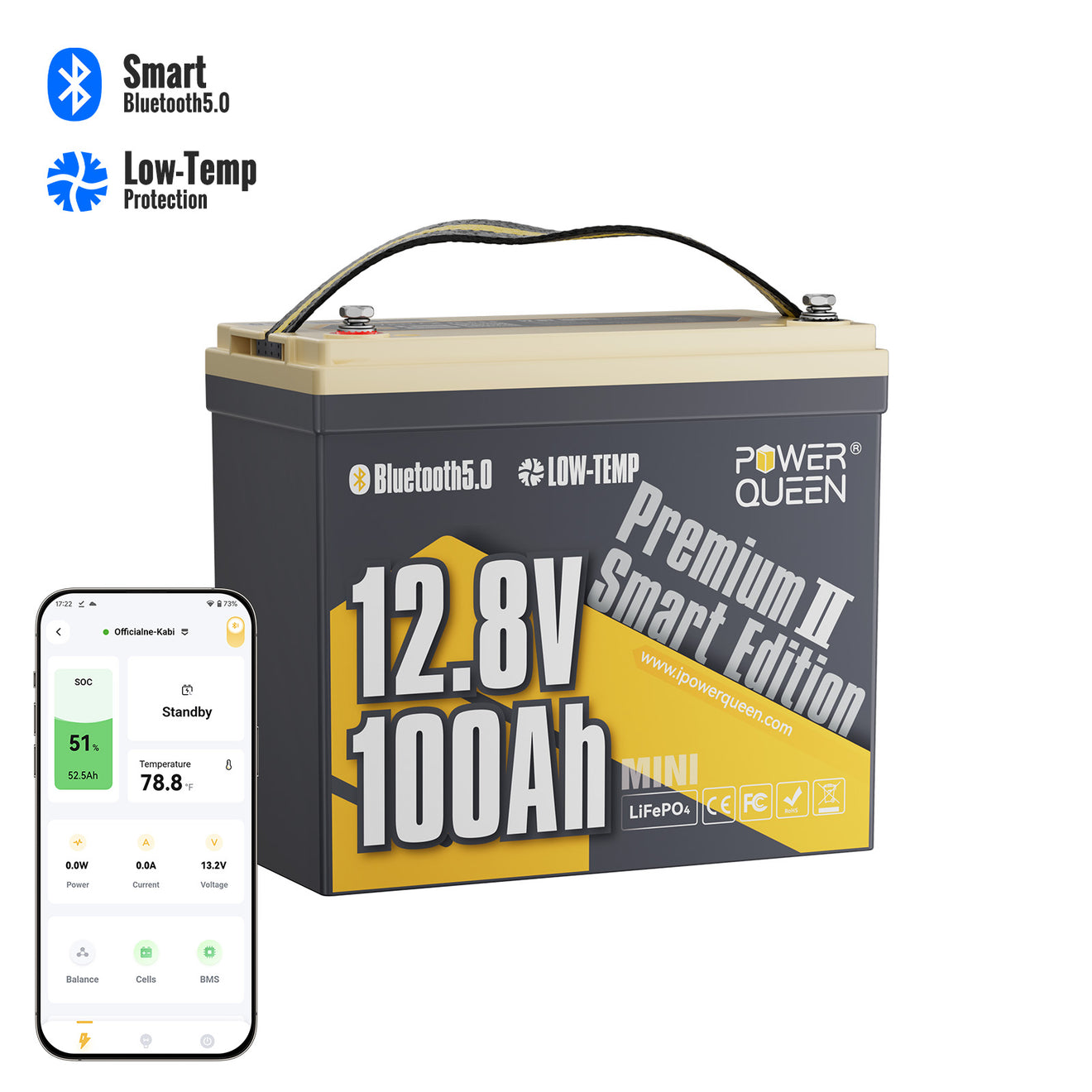

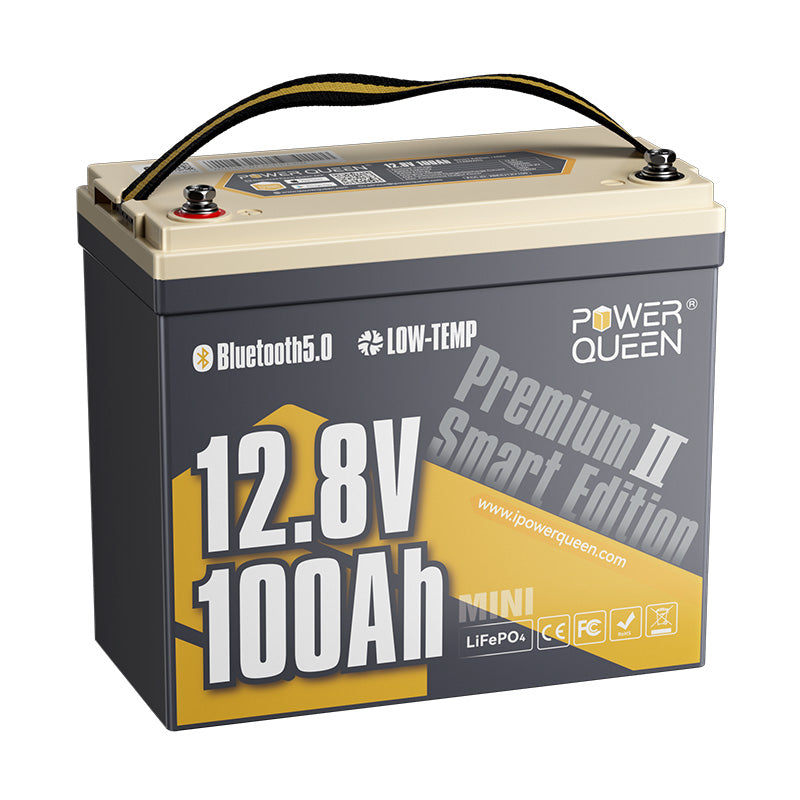

Power Queen 12V 100Ah Mini Low-temp Smart Deep Cycle Lithium Battery
$249.99
$349.99
[Smaller & More Space-Efficient Design – 22% Shorter, 24% Narrower] The Power Queen 12V 100Ah Mini LiFePO4 Battery is designed with compactness in mind, measuring 22% shorter and 24% narrower than traditional 12V 100Ah LiFePO4 batteries. With dimensions of L10.24in x W5.24in x H8.96in, it saves valuable space, making it an excellent fit for RVs, boats, and compact energy storage setups
[Enhanced Connectivity with Bluetooth 5.0] Monitor your battery’s performance in real-time via your smartphone with Bluetooth 5.0 technology. This upgrade allows for easy monitoring of vital battery metrics like charge level, voltage, and cycle count, offering more convenience and control over your power system, even from a distance
[Extra Protection BMS & Low Temp Cut-off] Our battery features an advanced BMS providing comprehensive protection, including overcharge, over-discharge, over-current, short circuit, over-temperature, and low-temperature protection. Maximize your battery's lifespan and charging efficiency with the low-temperature charging cutoff protection, ensuring safety and reliable power even in the coldest conditions
[Lighter Weight & Higher Energy Density – 19% Lighter, 20% Denser] Weighing just 19.8 lbs, this Mini LiFePO4 battery is 19% lighter than traditional models, with an improved energy density of 64.74 Wh/lb. It delivers the same impressive 1280Wh energy capacity, making it perfect for solar energy systems, camping, and marine use, without weighing you down
[Flexible Installation – Mount in Any Direction] For ultimate versatility, the Power Queen 12V 100Ah Mini LiFePO4 battery can be installed in any orientation, even upside down. This flexibility makes it ideal for tight spaces in RVs, boats, and off-grid solar setups, providing you with easy installation options without any restrictions
[10-Year Lifespan & Up to 15,000 Cycles] Built for durability, this battery boasts an impressive 10-year lifespan and supports up to 15,000 cycles at 60% depth of discharge (DOD). With its upgraded 100A BMS, the battery provides comprehensive protection while ensuring excellent long-term performance
[Quick Charging & Efficient Energy Storage] With a recommended charging voltage of 14.6V and 20A charging current, the Power Queen Mini charges fully in around 5 hours, ensuring rapid, efficient power replenishment for your RV, boat, or solar energy system
Attention Please: This battery is NOT suitable to be used as a starter battery, golf cart battery, or for high-power applications such as water pumps, electric jacks, lifts, vacuum cleaners, four-wheel drive lawn mowers, etc., for more info please consult Power Queen: service@ipowerqueen.com
View more
Choose Products
Quantity
Frequently Purchased
Total
$249.99
$349.99
Fast Free Shipping
2-5 business days in the US
Easy Return & Exchange
Not satisfied? We offer a hassle-free 30-day return and exchange policy.
Hassle-Free Warranty
We offer a worry-free warranty for all products. For details, check the product page or contact us at service@ipowerqueen.com with your order number.
Lifetime Customer Support
We'll Always be There for You. If you have any questions or concerns, feel free to contact us at service@ipowerqueen.com.
Share
12V 100Ah Mini Low-temp Smart
$249.99
$349.99
Features
Specs
Compare
FAQ
Reviews
.jpg)
Specs
BATTERY
Cell Type：
LiFePO4
Warranty：
5 Years
Cycle Life：
4000+
Nominal Voltage：
12.8V
Rated Capacity：
100Ah
Energy：
1280Wh
Max. Expansion (Parallel & Series)：
4P4S
Internal Resistance：
≤40mΩ
Certifications：
FCC ID,UL-1973,CE,RoHS,UN38.3,MIC
BMS
BMS：
100A
Max. Continuous Output Power：
1280W
Max. Continuous Charge Current：
100A
Max. Continuous Discharge Current：
100A
CHARGE
Charge Method：
CC/CV
Charge Voltage：
14.4±0.2V
Recommend Charge Current：
20A (0.2C)
TEMPERATURE
Charge Temperature：
0℃ to 50 ℃ / 32℉ to 122 ℉
Discharge Temperature：
20℃ to 60 ℃ / -4℉ to 140 ℉
Storage Temperature：
-10℃ to 50 ℃ / 14℉ to 122 ℉
Low-Temperature Protection：
√
Low-Temperature Charging Protection Auto Recovery：
5℃ / 41 ℉
OTHERS
Terminals：
M8*14 mm
Weight Approx.：
19.13 lbs
Size：
10.24*5.24*8.96 in
Housing Material：
ABS
Protection Class：
IP65
View all
Compare
| Product |
12V 100Ah Mini Low-temp Smart
$249.99
$349.99
|
12V 100Ah Mini
$229.99
$353.06
|
12V 100Ah Group 24 Smart
$239.99
$259.98
|
|---|---|---|---|
| Cell Type |
LiFePO4
|
LiFePO4
|
LiFePO4
|
| Warranty |
5 Years
|
5 Years
|
5 Years
|
| Cycle Life |
4000+
|
4000 cycles at 100% DOD, 6000 cycles at 80% DOD, 15,000 cycles at 60% DOD
|
4000 cycles at 100% DOD, 6000 cycles at 80% DOD, 15,000 cycles at 60% DOD
|
| Nominal Voltage |
12.8V
|
12.8V
|
12.8V
|
| Rated Capacity |
100Ah
|
100Ah
|
100Ah
|
| Energy |
1280Wh
|
1280Wh
|
1280Wh
|
| Max. Expansion (Parallel & Series) |
4P4S
|
4P4S
|
4P4S
|
| Internal Resistance |
≤40mΩ
|
≤40mΩ
|
≤40mΩ
|
| Certifications |
FCC ID,UL-1973,CE,RoHS,UN38.3,MIC
|
UL, FCC, CE, RoHS, UN38.3
|
UL, FCC, CE, RoHS, UN38.3
|
| BMS |
100A
|
100A
|
100A
|
| Max. Continuous Output Power |
1280W
|
1280W
|
1280W
|
| Max. Continuous Charge Current |
100A
|
100A
|
100A
|
| Max. Continuous Discharge Current |
100A
|
100A
|
100A
|
| Charge Method |
CC/CV
|
CC/CV
|
CC/CV
|
| Charge Voltage |
14.4±0.2V
|
14.4V ± 0.2V
|
14.4V ± 0.2V
|
| Recommend Charge Current |
20A (0.2C)
|
20A (0.2C)
|
20A (0.2C)
|
| Charge Temperature |
0℃ to 50 ℃ / 32℉ to 122 ℉
|
0℃ to 50℃ / 32℉ to 122℉
|
0℃ to 50℃ / 32℉ to 122℉
|
| Discharge Temperature |
20℃ to 60 ℃ / -4℉ to 140 ℉
|
-20℃ to 60℃ / -4℉ to 140℉
|
-20℃ to 60℃ / -4℉ to 140℉
|
| Storage Temperature |
-10℃ to 50 ℃ / 14℉ to 122 ℉
|
-10℃ to 50℃ / 14℉ to 122℉
|
-10℃ to 50℃ / 14℉ to 122℉
|
| Low-Temperature Protection |
√
|
/
|
√
|
| Low-Temperature Charging Protection Auto Recovery |
5℃ / 41 ℉
|
/
|
5℃ / 41 ℉
|
| Terminals |
M8*14 mm
|
M8*14 mm
|
M8*16 mm
|
| Weight Approx. |
19.13 lbs
|
19.84 lbs
|
22.16 lbs
|
| Size |
10.24*5.24*8.96 in
|
10.24*5.24*8.96 in
|
10.24*6.61*8.27 in
|
| Housing Material |
ABS
|
ABS
|
ABS
|
| Protection Class |
IP65
|
IP65
|
IP65
|
FAQ
Are Power Queen LiFePO4 Lithium batteries safe?
Yes. LiFePO4 is an intrinsically safe chemical and the most stable lithium-ion battery on the market. Power Queen lithium cells are UL certified, ensuring the highest safety and sustainability standards. All Power Queen LiFePO4 batteries include an internal Battery Management System that protects against undervoltage during discharge, overvoltage during charge, overcurrent during discharge, overheating during charge and discharge, and short-circuit protection, which protects battery cells from damage. Furthermore, Power Queen LiFePO4 Lithium batteries have been proved to be safe against fire and electric shock in tough settings.
Can I use Power Queen LiFePO4 Lithium batteries as starting batteries?
No. The Power Queen mini batteries are not intended to be used as starting batteries but energy storage, please do not use them to start any devices. Read the article Deep Cycle vs. Starting Batteries for more details.
Can I charge Power Queen LiFePO4 lithium batteries in cold weather (under freezing temperatures)?
The Power Queen 12V 100Ah mini LiFePO4 batteries can charge securely at temperatures ranging from 0℃ to 50 ℃ (32℉ to 122 ℉). The 12V 100Ah Mini Smart has been improved with low-temperature cut-off protection, allowing the battery to be automatically cut-off while charging and discharging in low temperatures to protect battery life and performance.
How do I store Power Queen LiFePO4 lithium batteries?
It is best to store Power Queen LiFePO4 batteries at 50% state of charge (SOC). If the batteries have been stored for an extended period of time, they should be recharged at least once every 3 months. Storage temperatures range from 10℃ to 35 ℃ and 50℉ to 95 ℉, with a relative humidity of 45% to 75%.
What is the difference between the Power Queen 12V 100Ah Mini Basic and 12V 100Ah Mini Smart?
Similarities: Both models have similar weight and dimensions, and each features a 100A BMS.
Differences: The Smart edition has more features than the Basic model:
Bluetooth 5.0: Allow customers to examine battery status, control the discharge switch, and monitor the battery system using a mobile app.
Low-Temperature Protection: If the temperature drops below 0°C/32°F, the battery will automatically cease charging to prevent harm. Charging will restart once the temperature rises over 5°C/41°F. When discharging, the battery automatically shuts off below -20°C/-4°F, assuring peak performance and longevity.
Advanced Power Queen Self-Developed BMS Board with Over 20 Protections: In addition to basic protections—Over-Charge, Over-Discharge, Over-Current, Short-Circuit, and Over-Temperature—the Smart version includes advanced protections such as Overload Protection with Self-Recovery (30s), Pre-Charging Function, Moisture Resistance, Salt-Spray Resistance, and Low-Temperature Cut-Off Protection.
What battery charger should I use for Power Queen 12V 100Ah Mini Low-temp Smart Deep Cycle Lithium Battery?
To optimum capacity, we recommend utilizing a 14.6V lithium iron phosphate (LiFePO4) battery charger.
①Recommended charging voltage: 14.2V to 14.6V.
②Recommend charging current:
20A (0.2C): to fully charge the battery to 100% capacity in around 5 hours.
50A (0.5C): the battery will be fully charged in around 2 hours, reaching 97% capacity.
To avoid sparks, connect the charger to the battery first, then to the grid. Disconnect the charger from the battery once fully charged.
Can I use an alternator or generator to charge the LiFePO4 lithium battery?
Yes. To charge Power Queen batteries, utilize your alternator or generator. If your alternator or generator allows DC output, you'll need a DC-to-DC charger to connect the battery to the generator. If your alternator or generator supports AC output, you can maximize capacity by using a 14.6V lithium iron phosphate (LiFePO4) battery charger.
